SKU: FYJ55KF-SKF

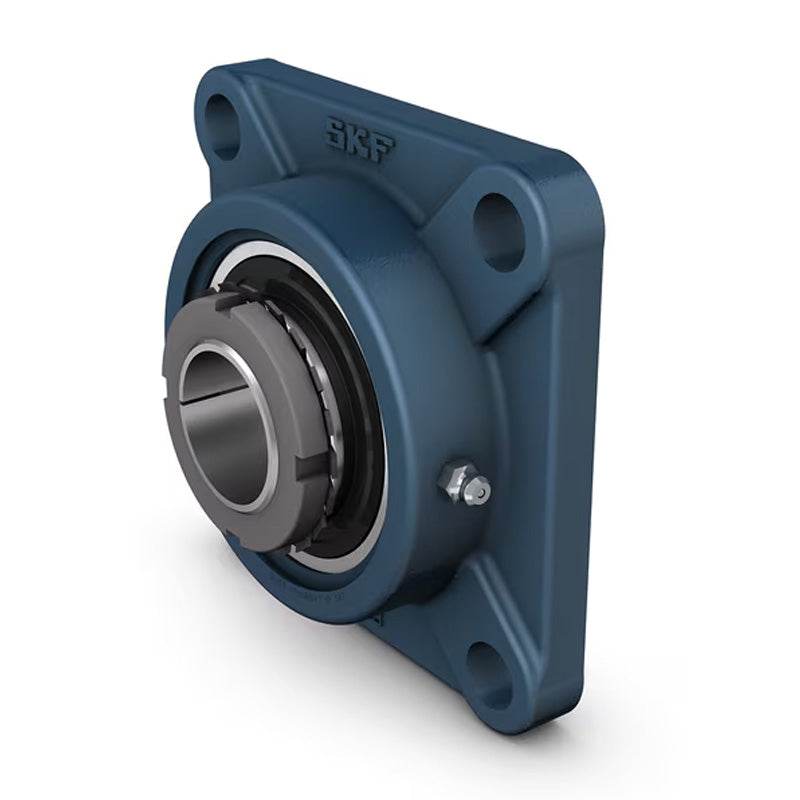

SKF FYJ55KF Flanged Unit with a Square Cast Housing with 50mm Insert
SKF FYJ55KF Flanged Unit with a Square Cast Housing with 50mm Insert
Regular price
€150,95
ex VAT
Regular price
Sale price
€150,95
ex VAT
In stock
Price Break
10+
€114,25
20+
€107,83
30+
€106,55
40+
€105,26
50+
€103,98
75+
€102,69
100+
€96,28
200+
€94,99
250+
€93,71
500+
€92,43
1000+
€89,86
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FYJ
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 17mm |
| B1 | 59mm |
| Da | 150.8mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| G | 16mm |
| s1 | 32.5mm |
| T | 57.5mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.6 kg |
