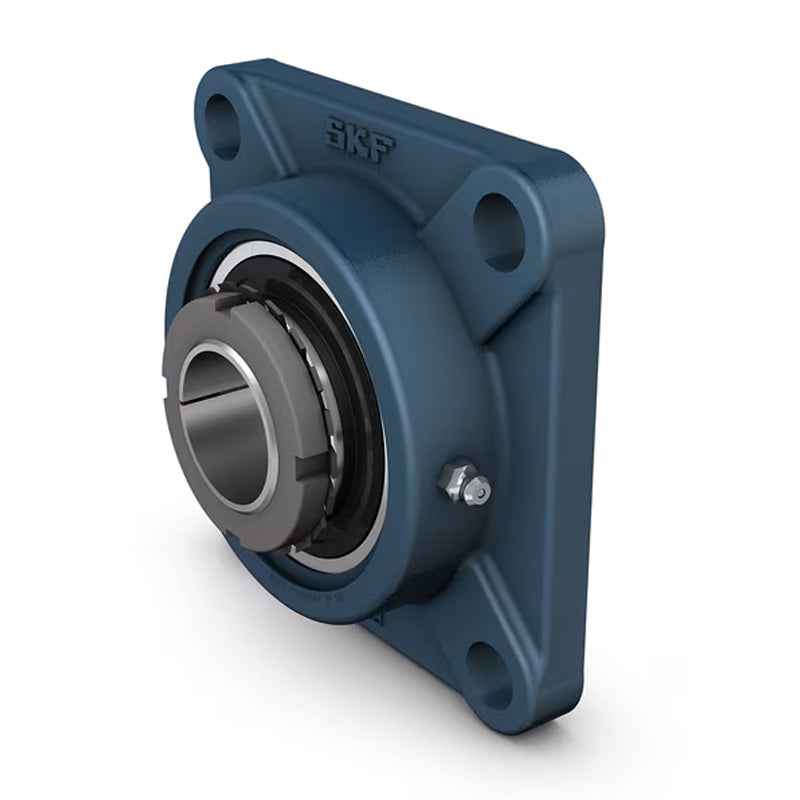

SKF FYJ40KF Flanged Unit with a Square Cast Housing with 35mm Insert
SKF FYJ40KF Flanged Unit with a Square Cast Housing with 35mm Insert
Regular price
€93,95
ex VAT
Regular price
Sale price
€93,95
ex VAT
In stock
Price Break
10+
€70,86
20+
€66,88
30+
€66,08
40+
€65,29
50+
€64,49
75+
€63,70
100+
€59,72
200+
€58,92
250+
€58,12
500+
€57,33
1000+
€55,73
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYJ
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 36mm |
| A2 | 14mm |
| B1 | 46mm |
| Da | 115.9mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| G | 14mm |
| s1 | 27mm |
| T | 48mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.75 kg |
