SKU: FYC35TF-SKF

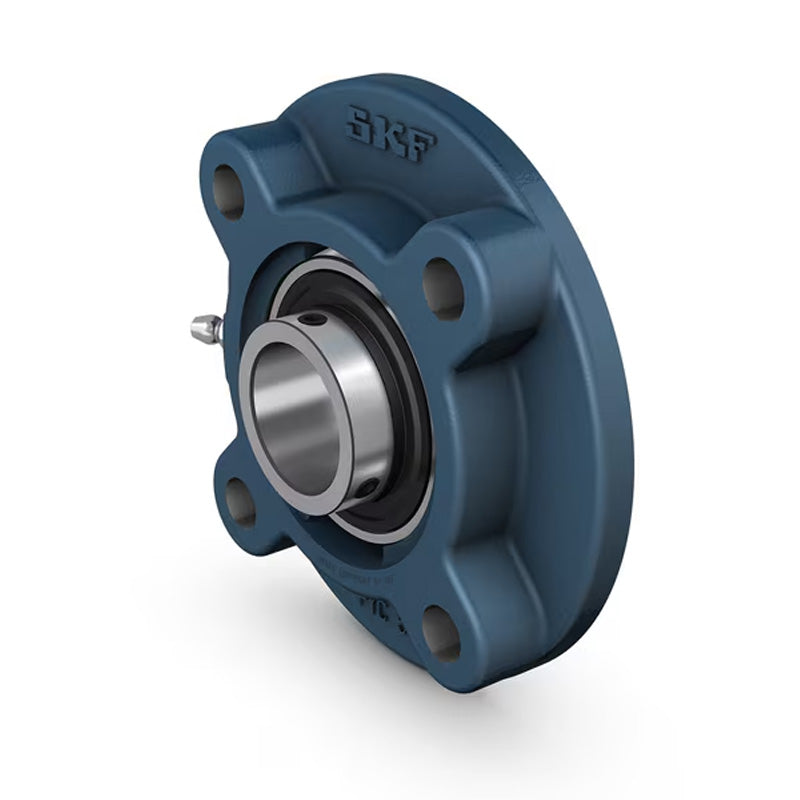

SKF FYC35TF Round Cast Housing with Grub Screw 35mm Insert
SKF FYC35TF Round Cast Housing with Grub Screw 35mm Insert
Regular price
€86,95
ex VAT
Regular price
Sale price
€86,95
ex VAT
In stock
Price Break
10+
€65,74
20+
€62,04
30+
€61,31
40+
€60,57
50+
€59,83
75+
€59,09
100+
€55,40
200+
€54,66
250+
€53,92
500+
€53,18
1000+
€51,70
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYC
- Pitch Circle Diameter:
- 110mm
Technical
Technical

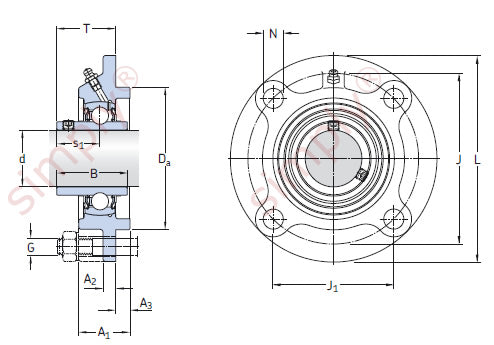

| d | 35mm |
|---|---|
| A1 | 34mm |
| A2 | 9mm |
| A3 | 8mm |
| B | 42.9mm |
| Da h8 | 90mm |
| J | 110mm |
| J1 | 77.8mm |
| L | 135mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 36.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.55 kg |
