SKU: FS-05S-DUN

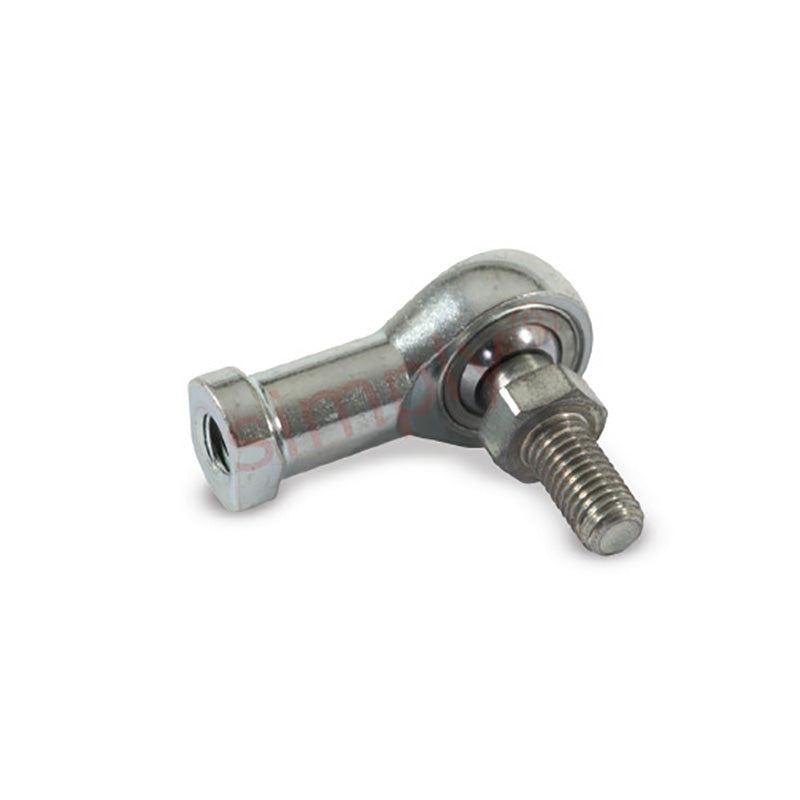

Dunlop FS-05S Right Hand Imperial Steel / PTFE Lined Maintenance Free Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days
Dunlop FS-05S Right Hand Imperial Steel / PTFE Lined Maintenance Free Studded Female Rod End 5/16 UNF Thread - Allow 7-10 Days
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
Equivalent to: PHS6+STUD
In stock
Description
Description
|
FSS Studded Maintenance Free Rod Ends With Female Thread: The FSS studded series are a steel on steel range of female rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, they do not require maintenance. Temperature range -200c to +260c. Stud, 230M07PB plated white/blue passivate (silver/clear). Benefits: High shock loads, extended wear life, no maintenance |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 5/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| Stud size | 5/16 UNF |
|---|---|
| Thread | 5/16 UNF |
| A | 0.687 inch |
| B | 0.547 inch |
| C | 0.594 inch |
| K | 0.437mm |
| Static load | 3190 N |
