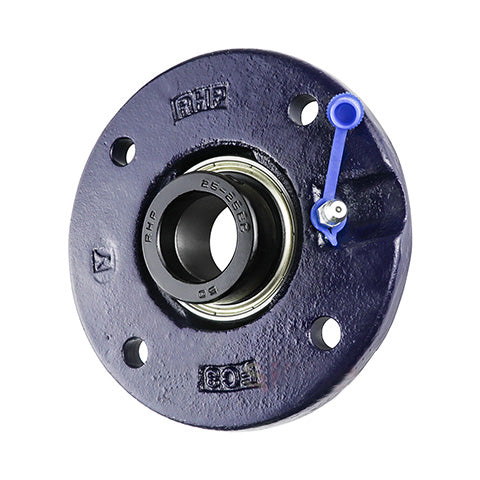

RHP FC2DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert

RHP FC2DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

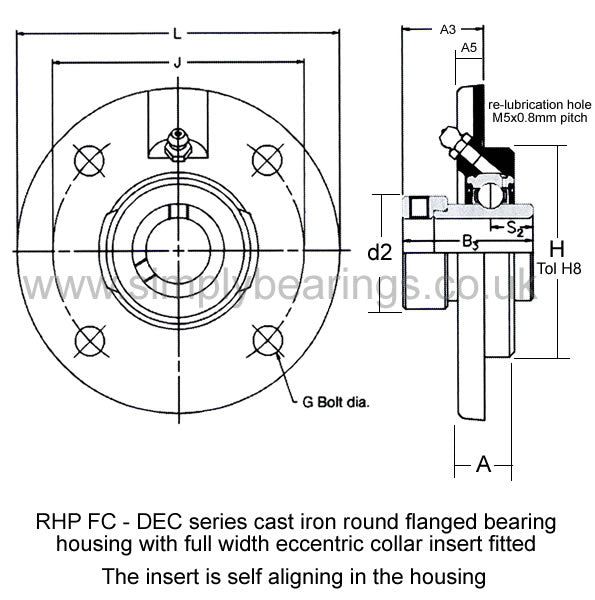

Bore 2 inch
L 7.283 inch
H 4.921 inch
J 5.906 inch
G 0.625 inch
A 1.083 inch
A3 1.721 inch
A5 0.591 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
