SKU: FC15/16-RHP

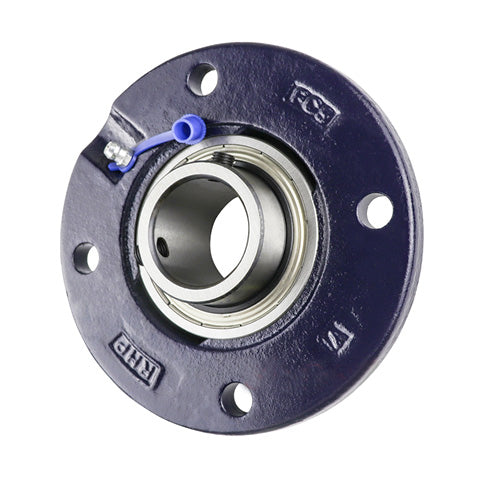

RHP FC15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 15/16 inch Insert
RHP FC15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 15/16 inch Insert
Out of stock
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- FC
- Pitch Circle Diameter:
- 89.99mm = 3.543 inch
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 4.528 inch |
| H | 2.756 inch |
| J | 3.543 inch |
| G | 0.3125 inch |
| A | 0.748 inch |
| A1 | 0.683 inch |
| A5 | 0.354 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-15/16G+insonly">1025-15/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
