SKU: FC1.3/4A-RHP

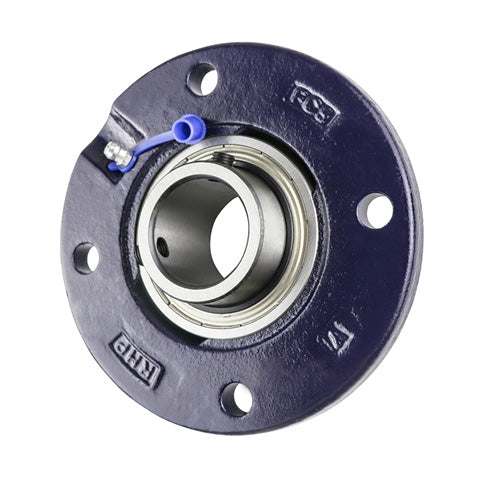

RHP FC1.3/4A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert

RHP FC1.3/4A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
L 6.102 inch
H 4.134 inch
J 5.118 inch
G 0.5 inch
A 0.984 inch
A1 1.109 inch
A5 0.472 inch
B1 1.621 inch
s1 0.435 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1250-1-3/4AG+insonly">1250-1-3/4AG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
