SKU: FBL-10-DUN

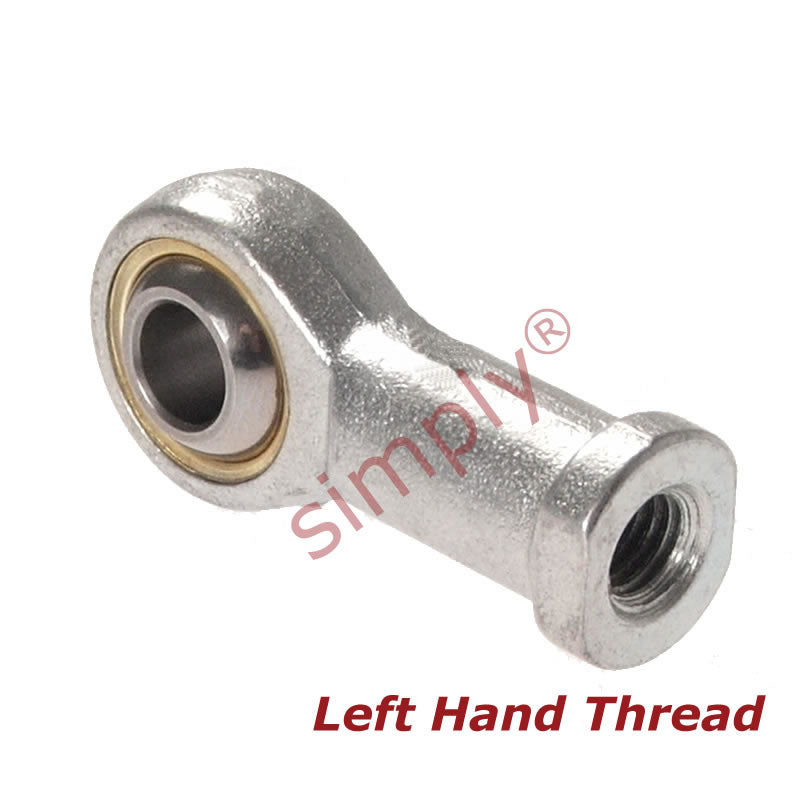

Dunlop FBL-10 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days
Dunlop FBL-10 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days
Regular price
€22,95
ex VAT
Regular price
Sale price
€22,95
ex VAT
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 5/8 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 5/8 inch |
|---|---|
| Thread | 5/8 UNF |
| W | 0.75 inch |
| H | 0.562 inch |
| D | 1.5 inch |
| L1 | 2.5 inch |
| L2 | 1.5 inch |
| O | 0.811 inch |
| AF | 0.875 inch |
| Static load | 22500 N |
