SKU: FB-M04-DUN

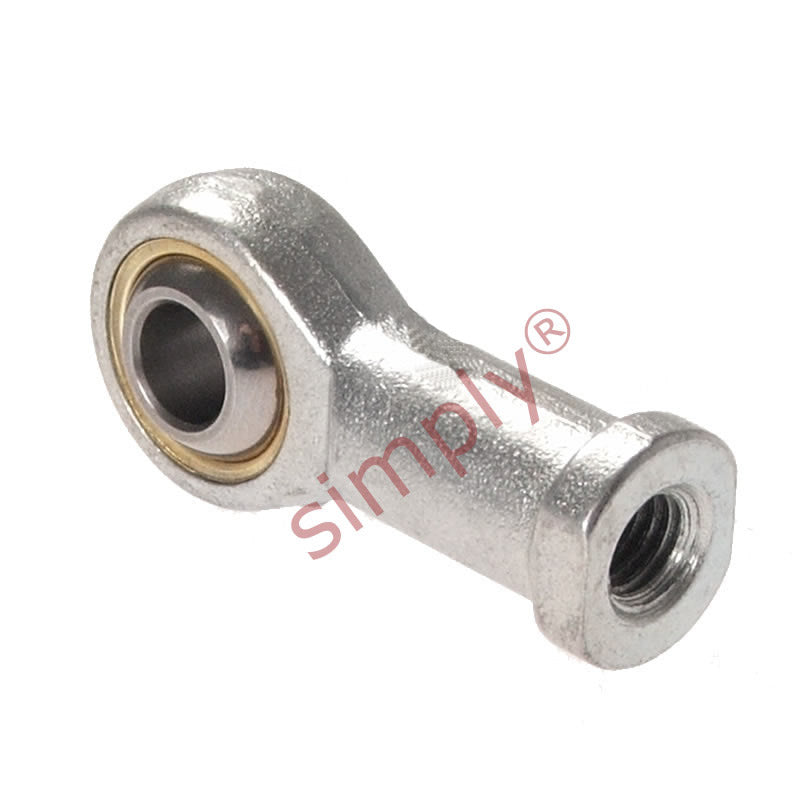

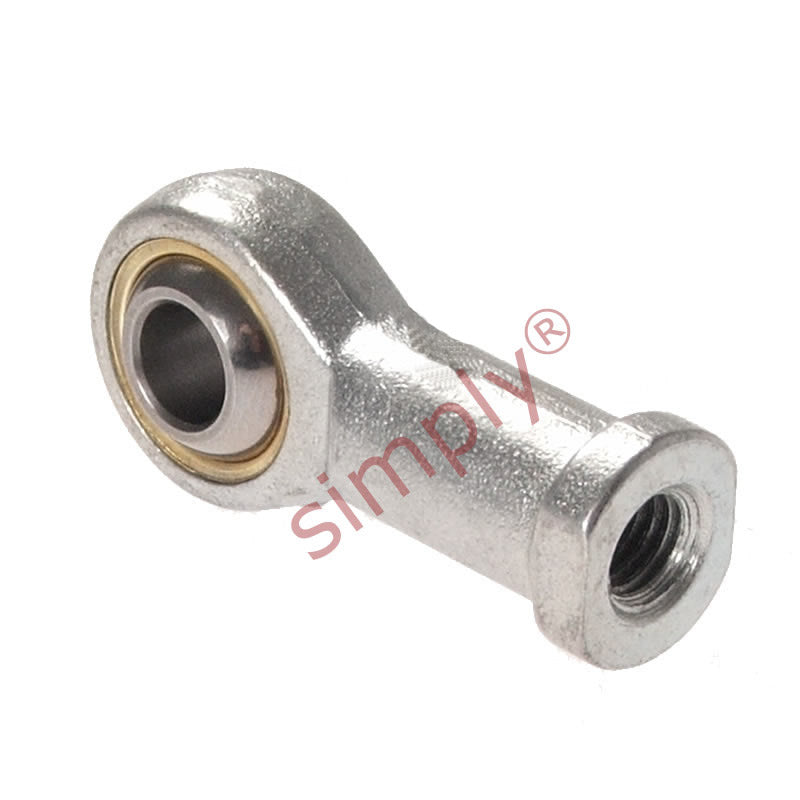

Dunlop FB-M04 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M4x0.7 Thread - Allow 2-3 Days
Dunlop FB-M04 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M4x0.7 Thread - Allow 2-3 Days
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
Equivalent to: PHS4
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M4x0.7
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 4mm |
|---|---|
| Thread | M4x0.7 |
| W | 7mm |
| H | 5mm |
| D | 14mm |
| L1 | 24mm |
| L2 | 12mm |
| O | 6.3mm |
| AF | 8mm |
| Static load | 4960 N |
