SKU: F120F+F120B+F120T-MB
Major Branded F120F/F120B Inner Facing Taper Bore/Pilot Bored Type Tyre Drive Coupling Assembly with Natural Rubber Tyre
Equivalent to: F120F-3525 F120B F120T
In stock
Price Break
Couldn't load pickup availability
Description
Branded Inner Taper Bore/Pilot Bored Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

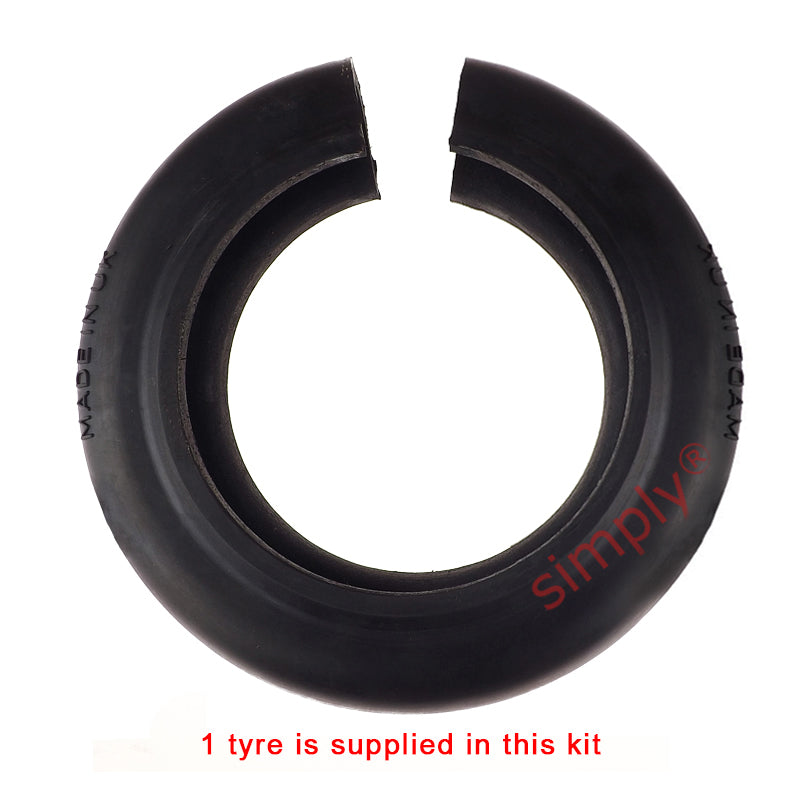

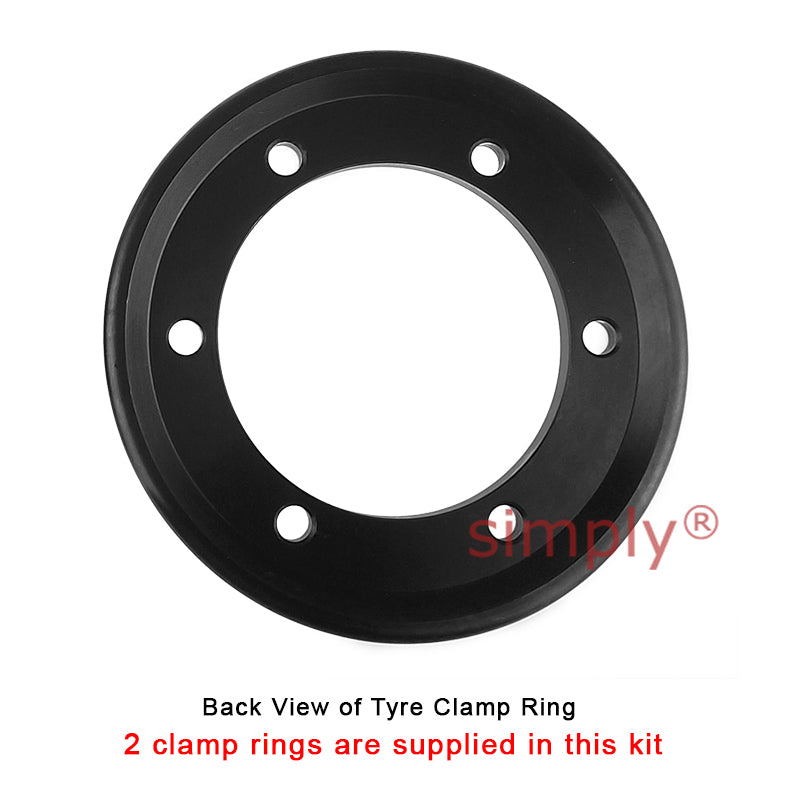

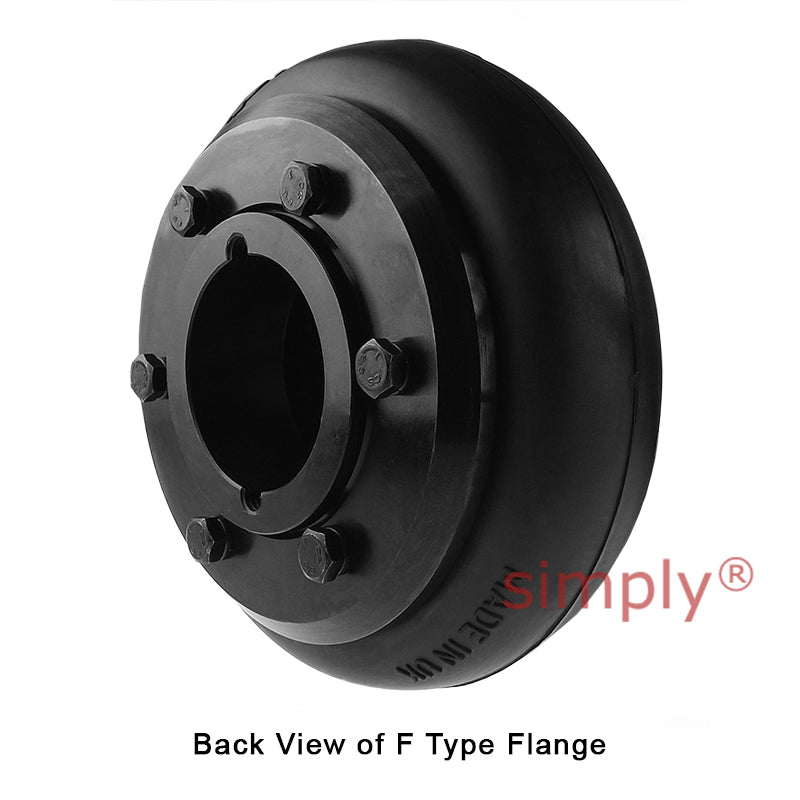

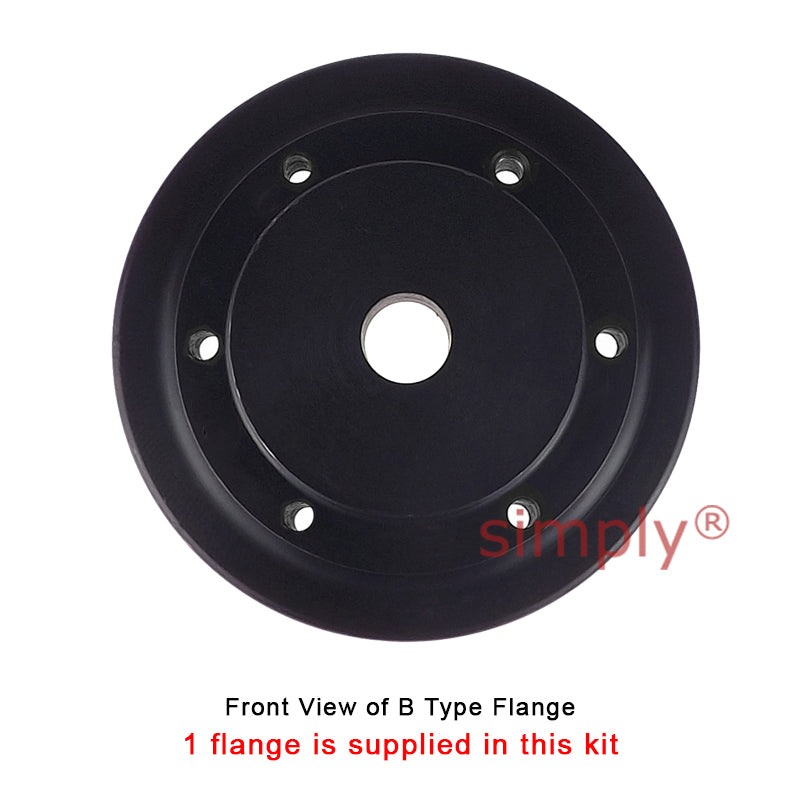

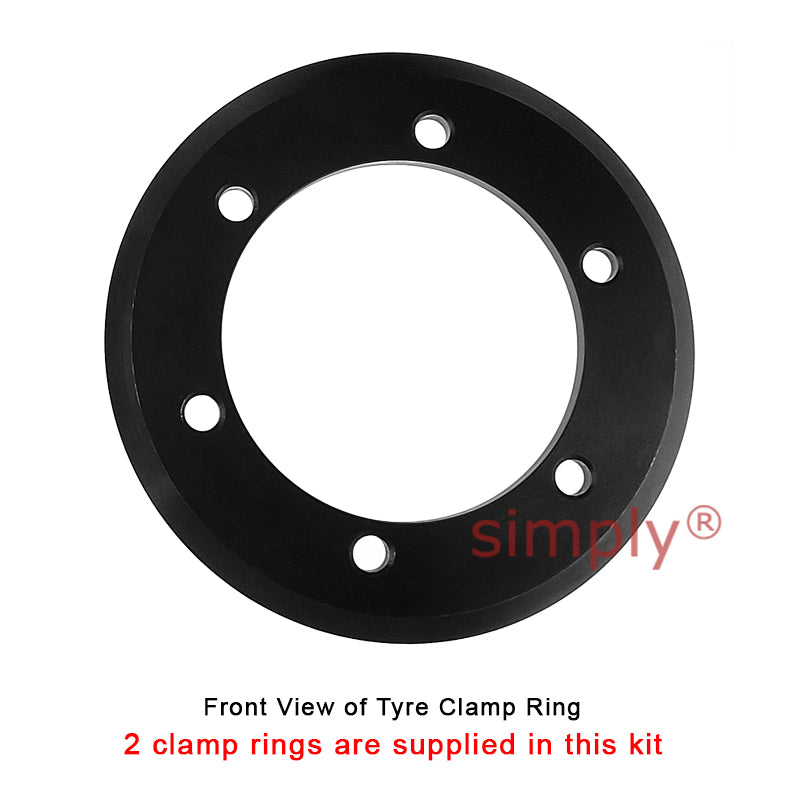

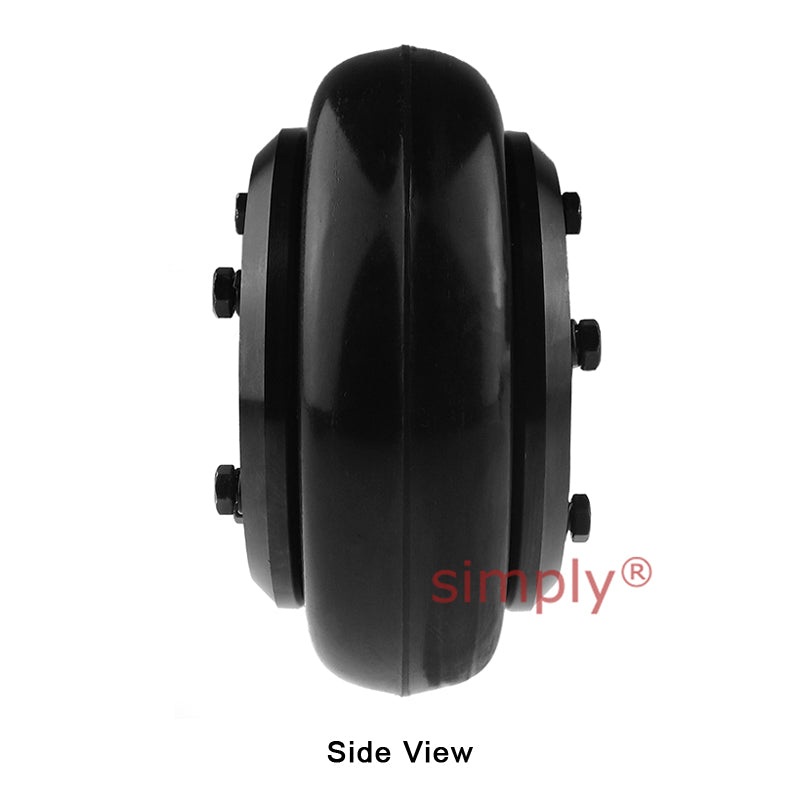

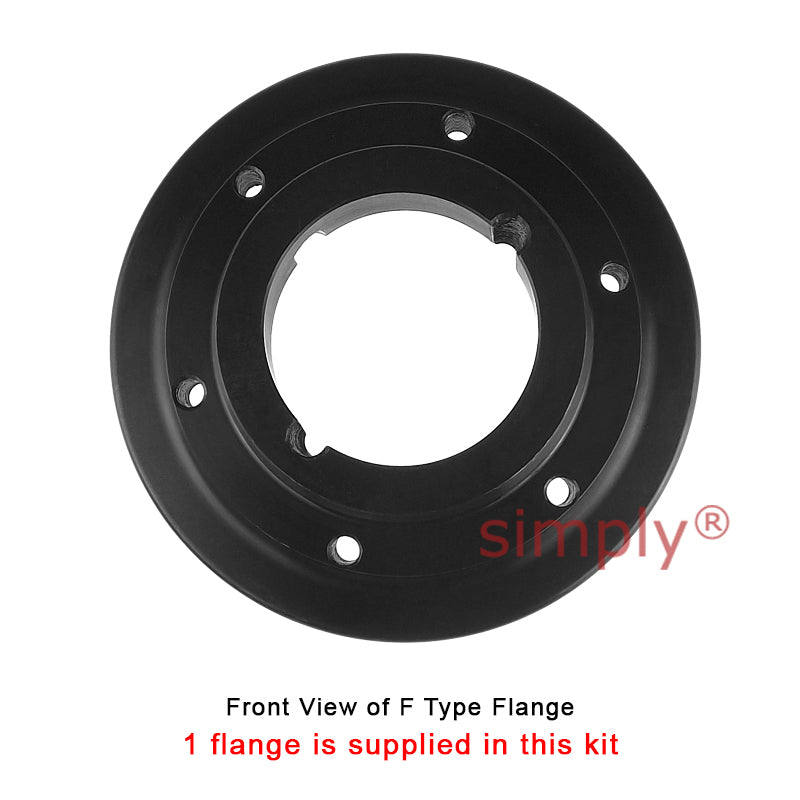

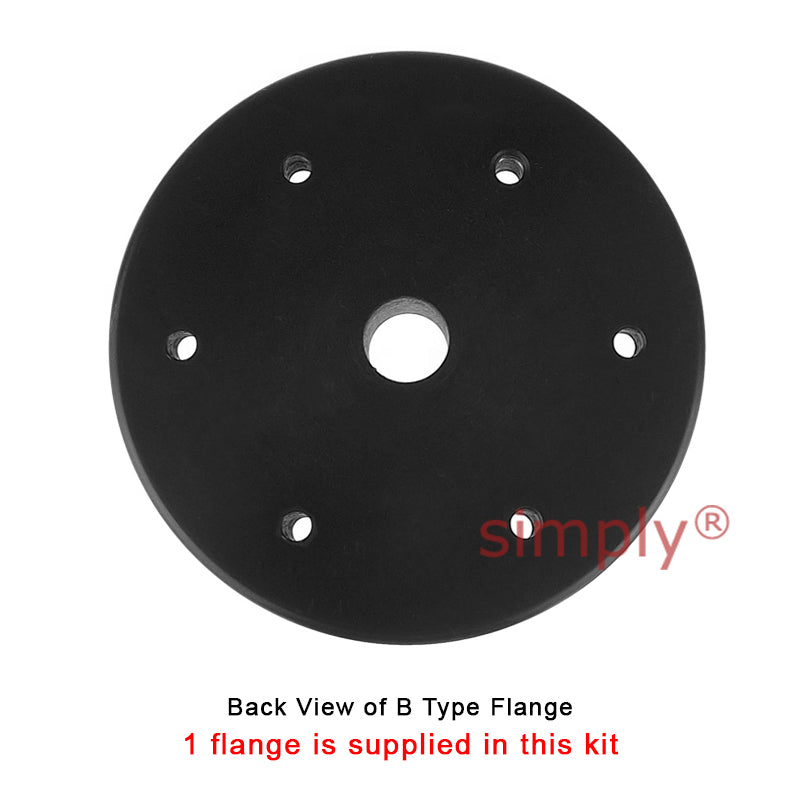

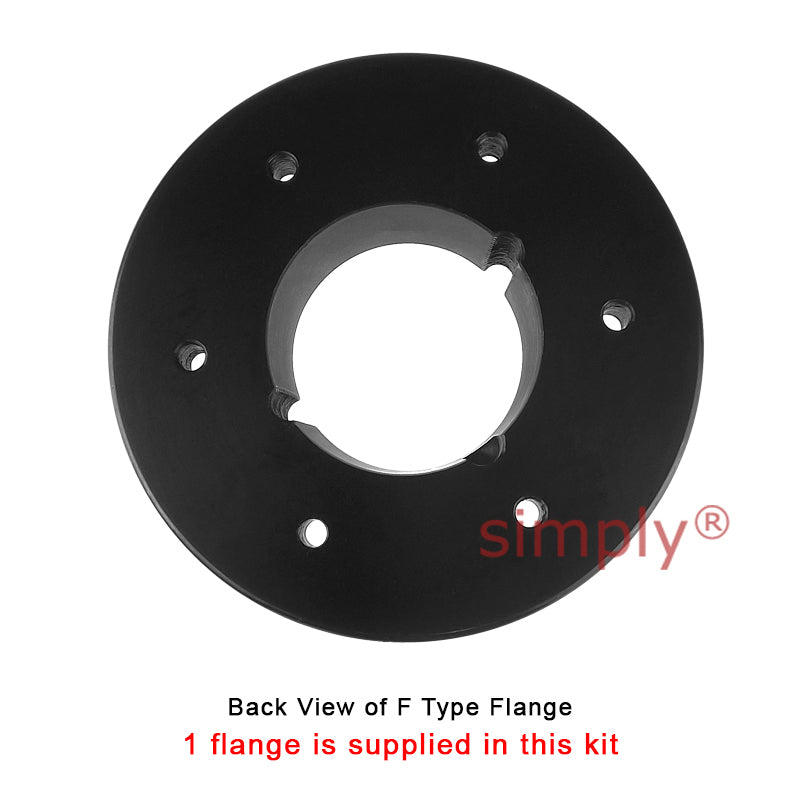

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching tyre element. This coupling assembly is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange and the B type is supplied with a nominally sized pilot bore flange.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 100mm or 4 inch
Technical

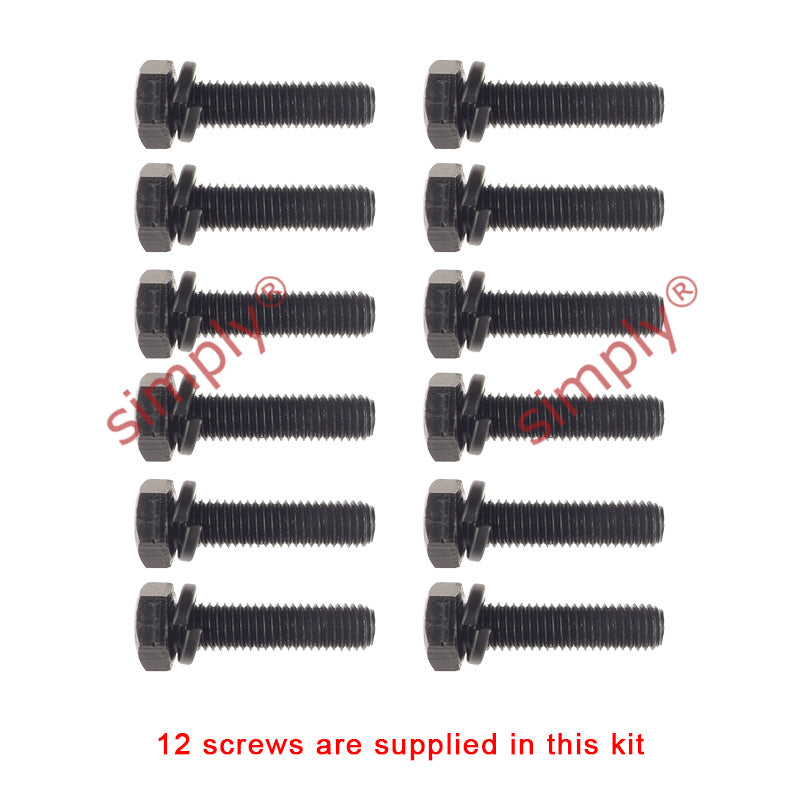

| F Type - Bush | 3525 <a href="advanced_search_result.php?keywords=taper+lock+bush+3525">[Click Here]</a> |
|---|---|
| F Type - Max Bore | 100mm |
| F Type - Max Bore | 4 inch |
| F Type - Flange A | 314mm |
| F Type - Flange B | 140mm |
| F Type - Flange C | 264mm |
| F Type - Flange E | 14.5mm |
| F Type - Flange G | 67mm |
| F Type - Flange F | 79.5mm |
| F Type - Flange D | 65mm |
| F Type - Flange Weight | 12.3kg |
| F Type - Inertia | 0.137kgm2 |
| F Type - Flange Face Spacing | 29mm |
| F Type - Gap Between Tyre Ends | 3mm |
| F Type - Nominal Torque | 1330 Nm |
| F Type - Max Speed | 2050 rev/min |
| F Type - Max Par Mis | 3.2mm |
| F Type - Max End Float | 4mm |
| F Type - Screw Size | M12 |
| F Type - Tigtening Torque | 50 Nm |
| B Type - Max Bore | 100mm |
| B Type - Flange A | 314mm |
| B Type - Flange B | 143mm |
| B Type - Flange C | 264mm |
| B Type - Flange E | 14.5mm |
| B Type - Flange F | 94.5mm |
| B Type - Flange D | 70mm |
| B Type - Clamping Screws | M16 |
| B Type - Flange Weight | 19kg |
| B Type - Inertia | 0.137kgm2 |
| B Type - Flange Face Spacing | 29mm |
| B Type - Gap Between Tyre Ends | 3mm |
| B Type - Nominal Torque | 1330 Nm |
| B Type - Max Speed | 2050 rev/min |
| B Type - Max Par Mis | 3.2mm |
| B Type - Max End Float | 4mm |
| B Type - Screw Size | M12 |
| B Type - Tigtening Torque | 50 Nm |
| Max Power at 100 rpm | 13.9 kW |
| Max Power at 200 rpm | 27.9 kW |
| Max Power at 300 rpm | 41.8 kW |
| Max Power at 400 rpm | 55.7 kW |
| Max Power at 500 rpm | 69.6 kW |
| Max Power at 600 rpm | 93.6 kW |
| Max Power at 700 rpm | 97.5 kW |
| Max Power at 720 rpm | 100 kW |
| Max Power at 800 rpm | 111 kW |
| Max Power at 900 rpm | 125 kW |
| Max Power at 960 rpm | 134 kW |
| Max Power at 1000 rpm | 139 kW |
| Max Power at 1200 rpm | 167 kW |
| Max Power at 1400 rpm | 195 kW |
| Max Power at 1440 rpm | 201 kW |
| Max Power at 1600 rpm | 223 kW |
| Max Power at 1800 rpm | 251 kW |
| Max Power at 2000 rpm | 279 kW |
| Maximum Speed | 2050 rev/min |
| Nominal Torque | 1330 Nm TKN |
| Maximum Torque | 3547 Nm TK MAX |
| Torsional Stiffness | 296 Nm/° |
| Max. Parallel Misalignment | 3.2mm |
| Maximum End Float | 4mm ± |
| Approximate Mass | 2.3kg |
| Alternating Torque | 591 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
