SKU: F110F+F110B+F110T-MB
Major Branded F110F/F110B Inner Facing Taper Bore/Pilot Bored Type Tyre Drive Coupling Assembly with Natural Rubber Tyre
Equivalent to: F110F-3020 F110B F110T
In stock
Price Break
Couldn't load pickup availability
Description
Branded Inner Taper Bore/Pilot Bored Natural Rubber Tyre Drive Coupling Assembly with Natural Rubber Tyre: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

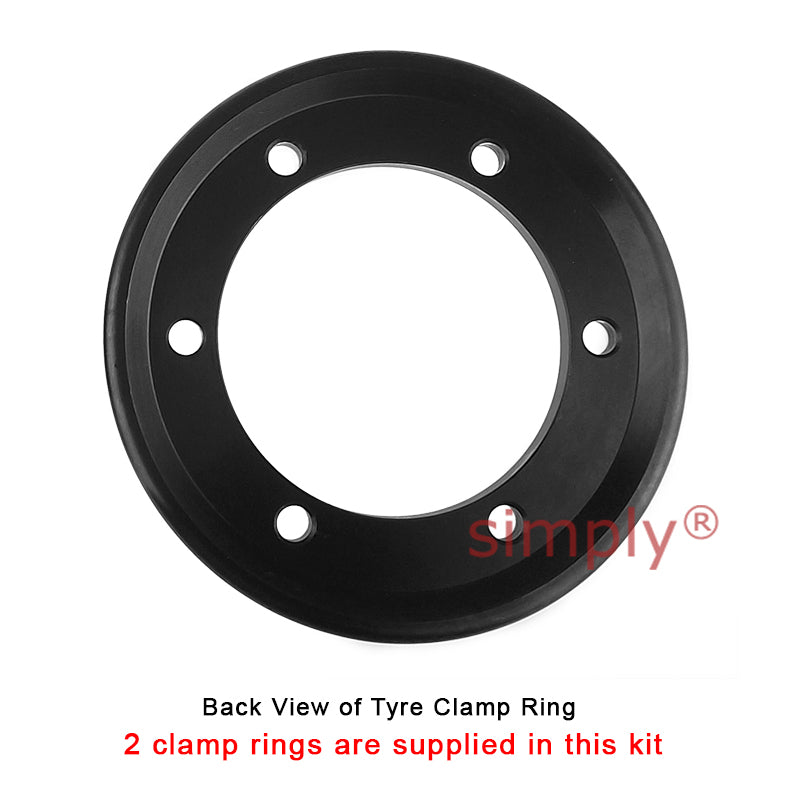

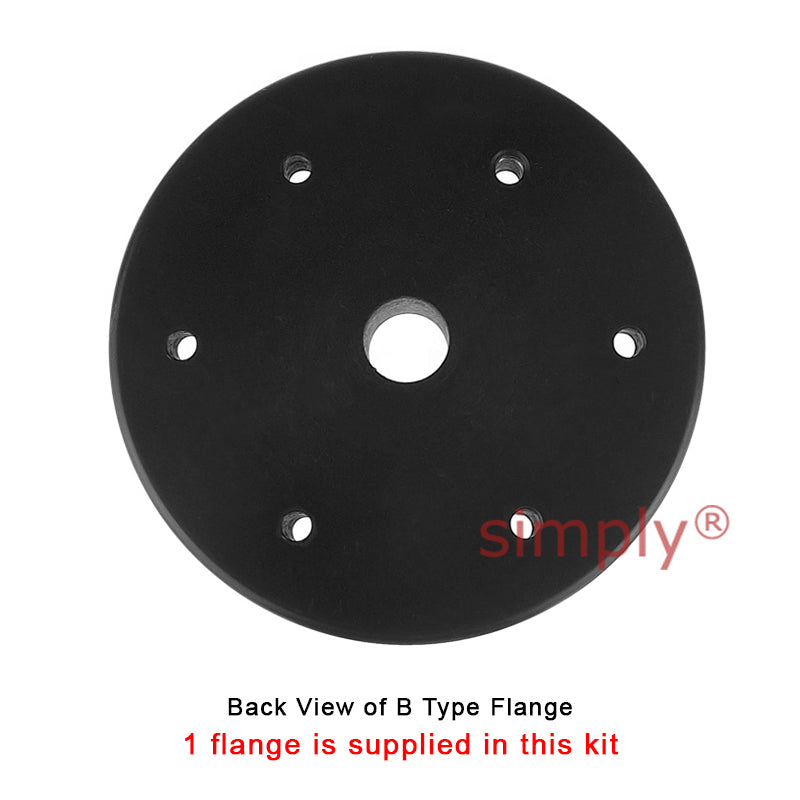

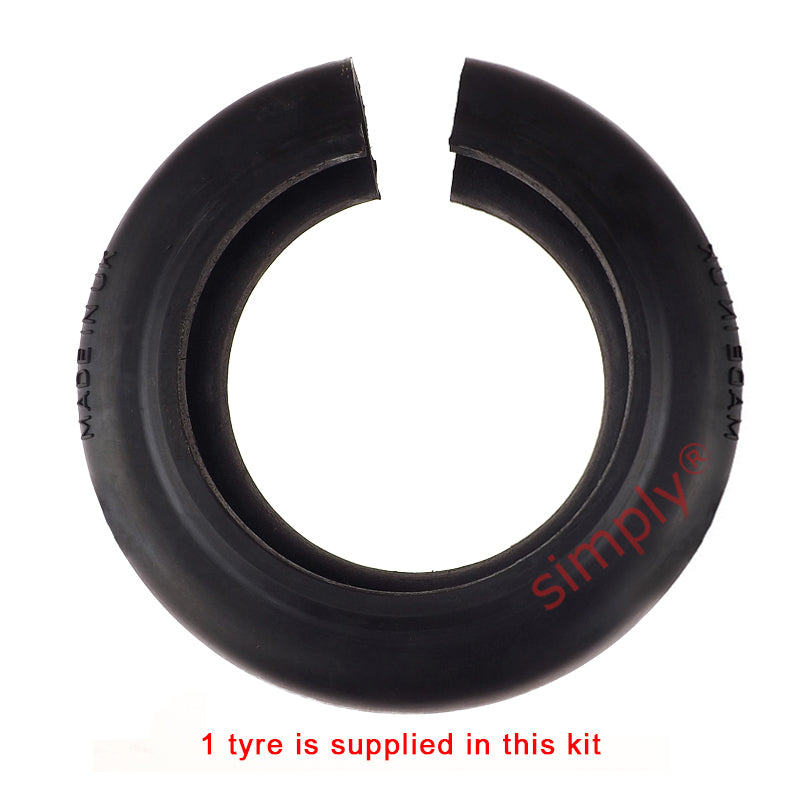

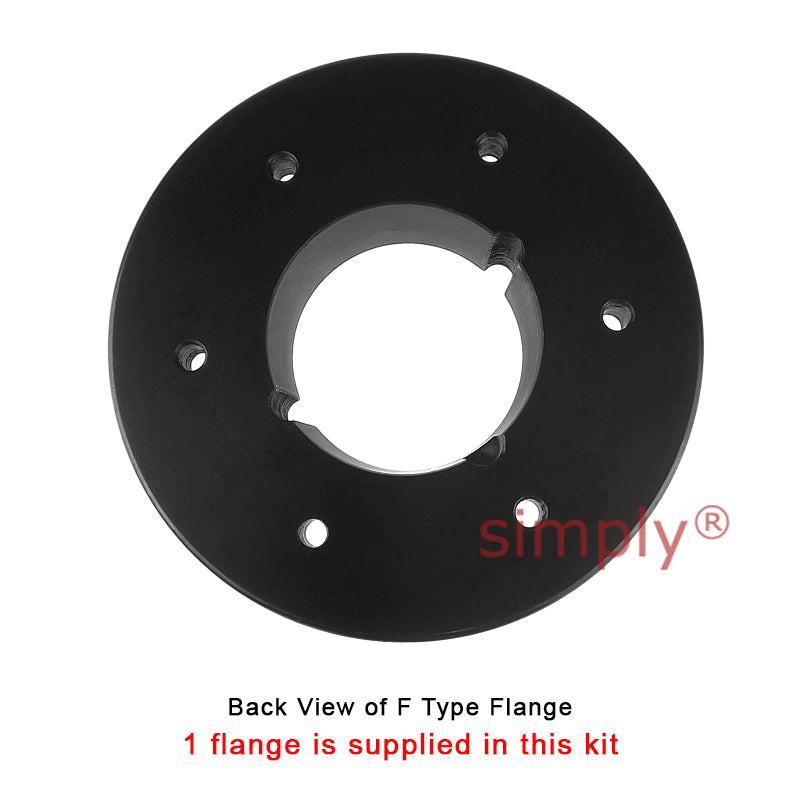

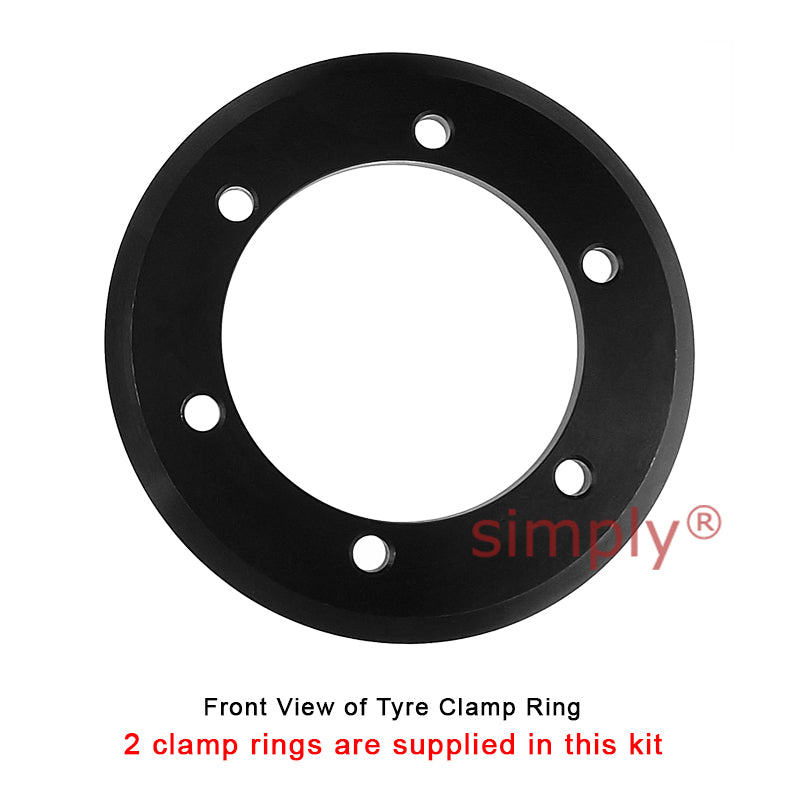

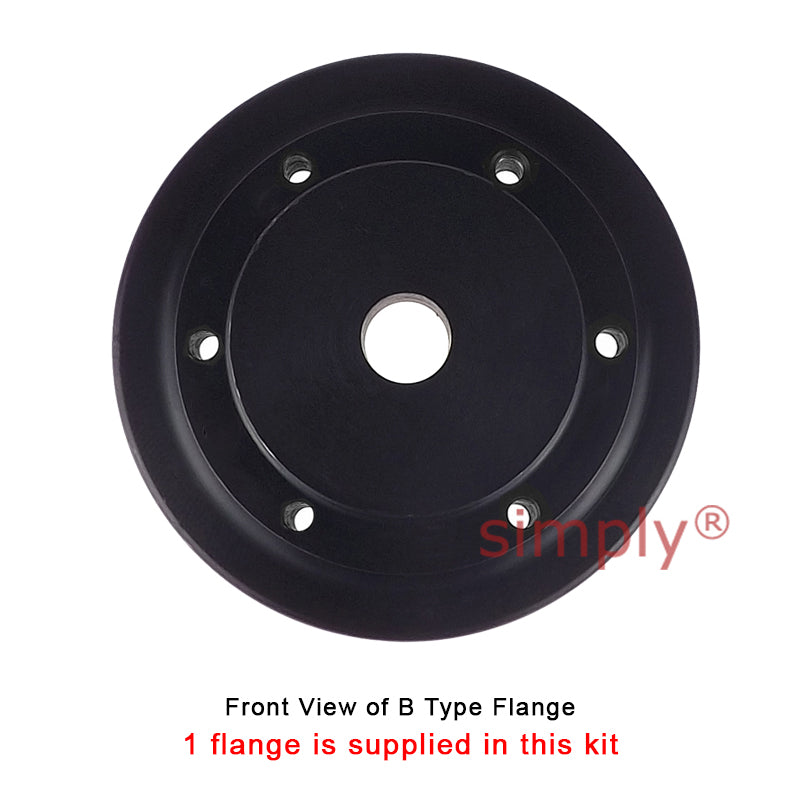

Supplied as a complete coupling assembly (except for tapered locking bushes as you will need to select the shaft size for your application). The assembly comprises of 2 steel flanges and a matching tyre element. This coupling assembly is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange and the B type is supplied with a nominally sized pilot bore flange.
The natural rubber compound is suitable for use in ambient temperatures of -50 deg C to +50 deg C. The inserts has excellent shock absorbing properties of the insert reduces vibration and torsional oscillations.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 75mm or 3 inch
Technical
| F Type - Bush | 3020 <a href="advanced_search_result.php?keywords=taper+lock+bush+3020">[Click Here]</a> |
|---|---|
| F Type - Max Bore | 75mm |
| F Type - Max Bore | 3 inch |
| F Type - Flange A | 279mm |
| F Type - Flange B | 134mm |
| F Type - Flange C | 233mm |
| F Type - Flange E | 12.5mm |
| F Type - Flange G | 55mm |
| F Type - Flange F | 63.5mm |
| F Type - Flange D | 51mm |
| F Type - Flange Weight | 11.63kg |
| F Type - Inertia | 0.078kgm2 |
| F Type - Flange Face Spacing | 25mm |
| F Type - Gap Between Tyre Ends | 3mm |
| F Type - Nominal Torque | 875 Nm |
| F Type - Max Speed | 2300 rev/min |
| F Type - Max Par Mis | 2.9mm |
| F Type - Max End Float | 3.7mm |
| F Type - Screw Size | M10 |
| F Type - Tigtening Torque | 40 Nm |
| B Type - Max Bore | 90mm |
| B Type - Flange A | 279mm |
| B Type - Flange B | 128mm |
| B Type - Flange C | 233mm |
| B Type - Flange E | 12.5mm |
| B Type - Flange F | 75.5mm |
| B Type - Flange D | 63mm |
| B Type - Clamping Screws | M12 |
| B Type - Flange Weight | 13.7kg |
| B Type - Inertia | 0.081kgm2 |
| B Type - Flange Face Spacing | 25mm |
| B Type - Gap Between Tyre Ends | 3mm |
| B Type - Nominal Torque | 875 Nm |
| B Type - Max Speed | 2300 rev/min |
| B Type - Max Par Mis | 2.9mm |
| B Type - Max End Float | 3.7mm |
| B Type - Screw Size | M10 |
| B Type - Tigtening Torque | 40 Nm |
| Max Power at 100 rpm | 9.16 kW |
| Max Power at 200 rpm | 18.3 kW |
| Max Power at 300 rpm | 27.5 kW |
| Max Power at 400 rpm | 36.6 kW |
| Max Power at 500 rpm | 45.8 kW |
| Max Power at 600 rpm | 55 kW |
| Max Power at 700 rpm | 64.1 kW |
| Max Power at 720 rpm | 66 kW |
| Max Power at 800 rpm | 73.3 kW |
| Max Power at 900 rpm | 82.5 kW |
| Max Power at 960 rpm | 88 kW |
| Max Power at 1000 rpm | 91.6 kW |
| Max Power at 1200 rpm | 110 kW |
| Max Power at 1400 rpm | 128 kW |
| Max Power at 1440 rpm | 132 kW |
| Max Power at 1600 rpm | 147 kW |
| Max Power at 1800 rpm | 165 kW |
| Max Power at 2000 rpm | 183 kW |
| Max Power at 2200 rpm | 202 kW |
| Maximum Speed | 2300 rev/min |
| Nominal Torque | 875 Nm TKN |
| Maximum Torque | 2137 Nm TK MAX |
| Torsional Stiffness | 178 Nm/° |
| Max. Parallel Misalignment | 2.9mm |
| Maximum End Float | 3.7mm ± |
| Approximate Mass | 1.4kg |
| Alternating Torque | 356 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
