• SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
1 1

SKU: EXT212-SNR

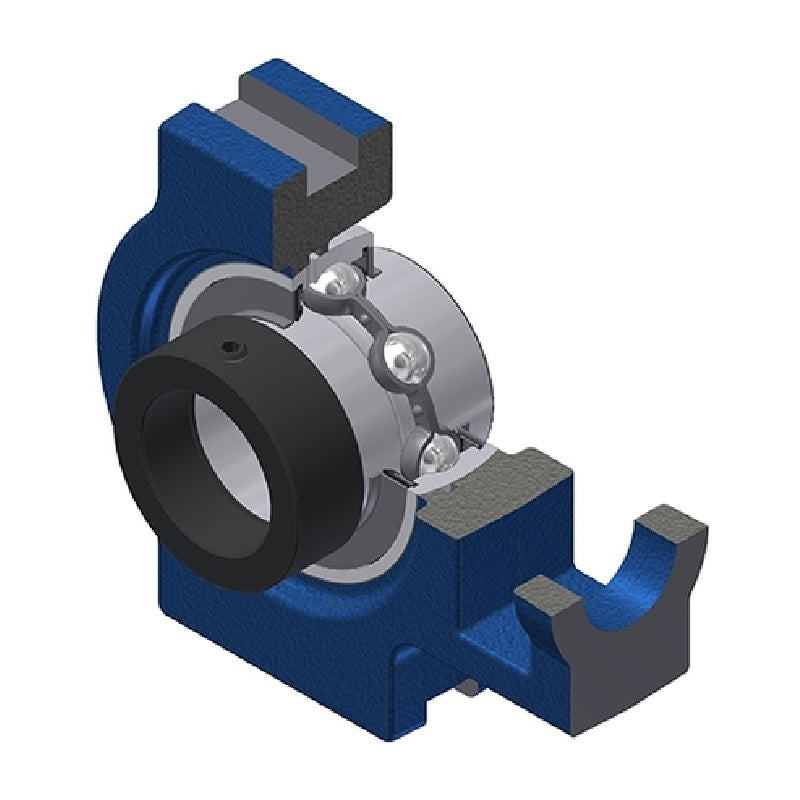

SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR EXT212 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
€89,95 ex VAT
€89,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €67,97
4+ €64,15
9+ €63,38
19+ €62,62
49+ €61,86
99+ €61,09
499+ €57,28
999+ €56,51
1999+ €55,75
2999+ €54,98
4999+ €53,46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6PG16FZ2HG
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
EXT
Technical

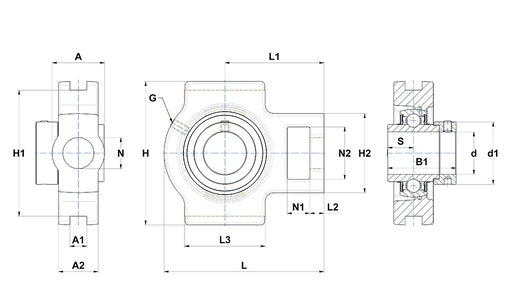

--- Dimensions
Shaft diameter d 60mm
A 64mm
A1 22mm
A2 42mm
B1 77.7mm
d1 82mm
H 146mm
H1 130mm
H2 102mm
L 194mm
L1 119mm
L2 19mm
L3 102mm
N 35mm
N1 32mm
N2 64mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 5.07 kg
