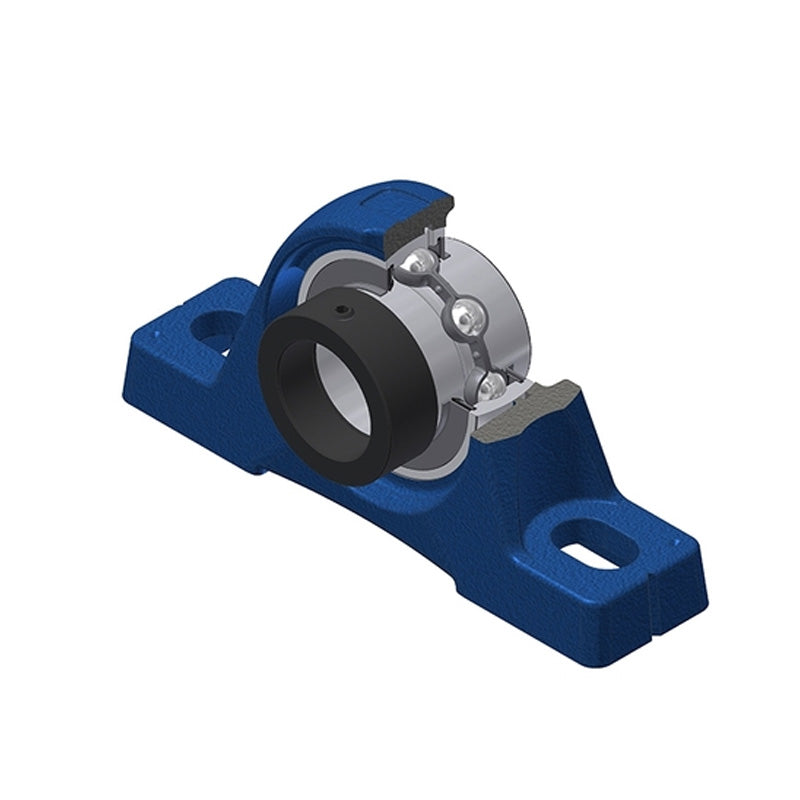

• SNR EXPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXPE218-SNR

SNR EXPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
€291,95 ex VAT
€291,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €221,14
4+ €208,72
9+ €206,23
19+ €203,75
49+ €201,26
99+ €198,78
499+ €186,35
999+ €183,87
1999+ €181,38
2999+ €178,90
4999+ €173,93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3O5D679ERX
Brand / Quality:
SNR - High Quality
Inside Diameter:
90mm
Style:
EXPE
Bolt Hole Centres:
268mm
Technical

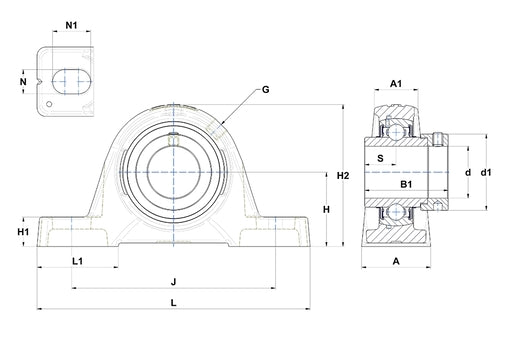

--- Dimensions
Shaft diameter 90mm
A 85mm
A1 55mm
B 55mm
d1 120mm
H 101.6mm
H1 35mm
H2 200mm
J 268mm
L 330mm
L1 99mm
N 27mm
N1 35mm
S 24.5mm
G R1/8
--- Load rating
Dynamic load C 96 kN
Static load C0 71.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 14 kg
