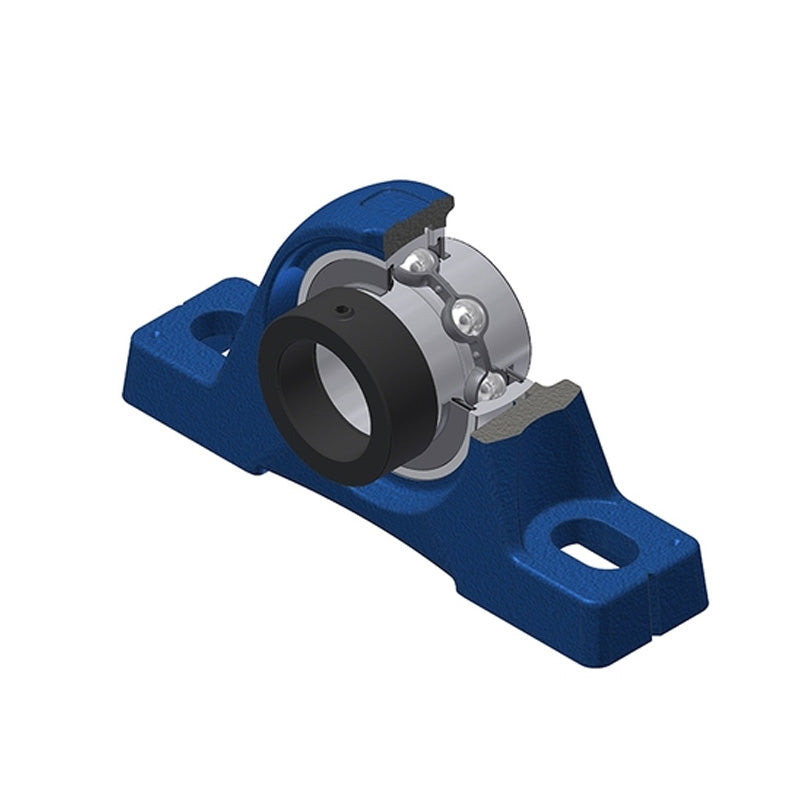

• SNR EXPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXPE209-SNR

SNR EXPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
€51,95 ex VAT
€51,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,46
4+ €37,25
9+ €36,80
19+ €36,36
49+ €35,91
99+ €35,47
499+ €33,25
999+ €32,81
1999+ €32,37
2999+ €31,92
4999+ €31,04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3O5D679ERX
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EXPE
Bolt Hole Centres:
150mm
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 42.8mm
d1 62mm
H 54mm
H1 21.5mm
H2 107mm
J 150mm
L 192mm
L1 54.5mm
N 14mm
N1 29mm
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.37 kg
