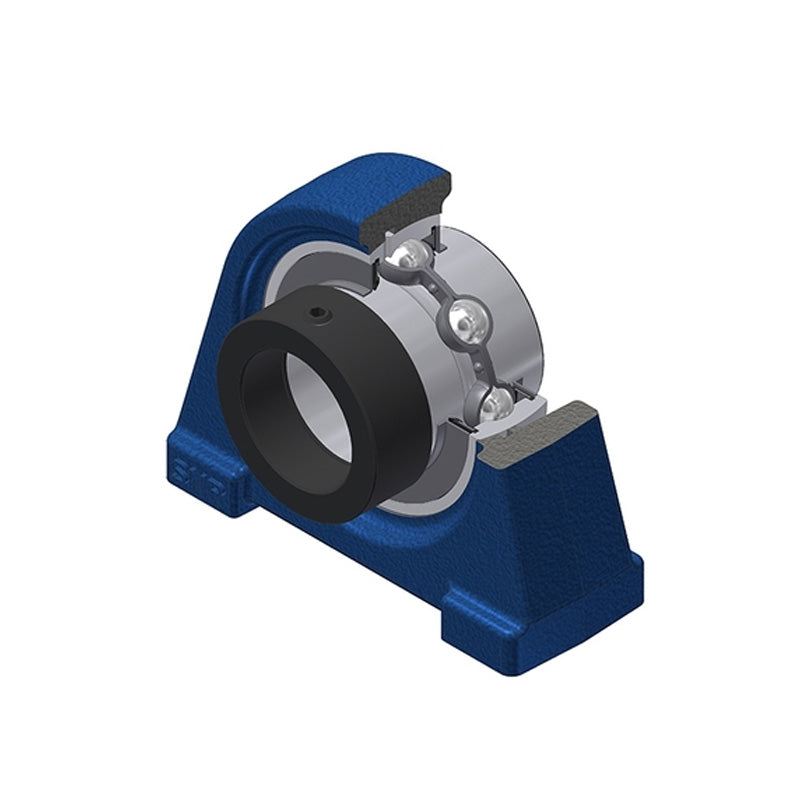

• SNR EXPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
1 1

SKU: EXPAE210-SNR

SNR EXPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days

SNR EXPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
€65,95 ex VAT
€65,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €49,76
4+ €46,96
9+ €46,40
19+ €45,84
49+ €45,28
99+ €44,73
499+ €41,93
999+ €41,37
1999+ €40,81
2999+ €40,25
4999+ €39,13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXPAE
Bolt Hole Centres:
101.6mm
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 49.2mm
d1 67.2mm
E 20mm
H 57.2mm
H1 15mm
H2 115mm
J 101.6mm
L 135mm
L1 33.5mm
N M16
S 24.6mm
G R1/8
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.71 kg
