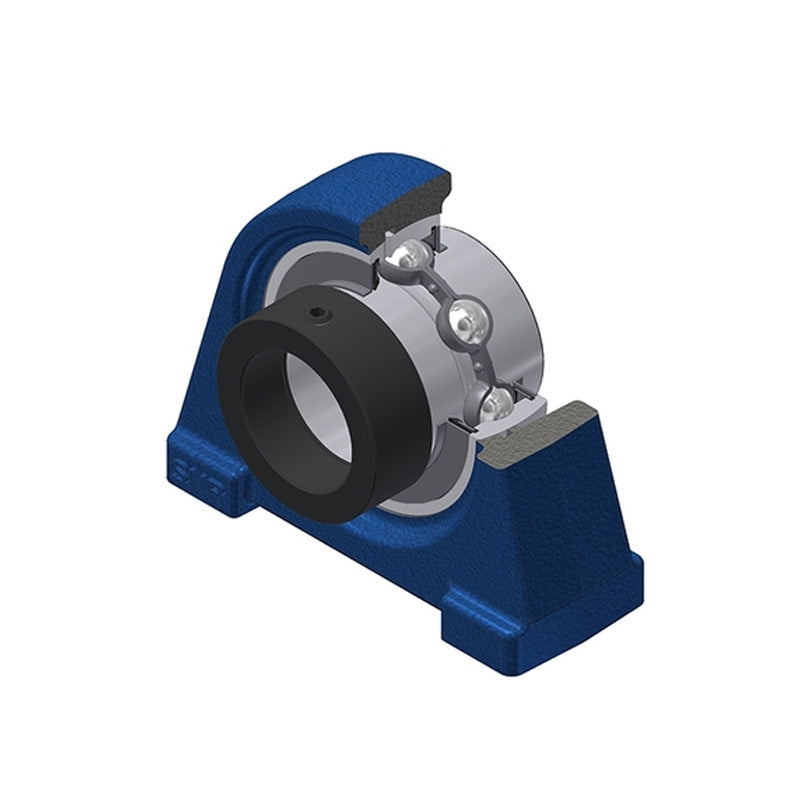

• SNR EXPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
1 1

SKU: EXPAE209-SNR

SNR EXPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR EXPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
€58,95 ex VAT
€58,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €44,61
4+ €42,10
9+ €41,60
19+ €41,10
49+ €40,60
99+ €40,10
499+ €37,59
999+ €37,09
1999+ €36,59
2999+ €36,09
4999+ €35,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EXPAE
Bolt Hole Centres:
95.3mm
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 42.8mm
d1 62mm
E 15mm
H 53.9mm
H1 14mm
H2 107mm
J 95.3mm
L 120mm
L1 29mm
N M12
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.07 kg
