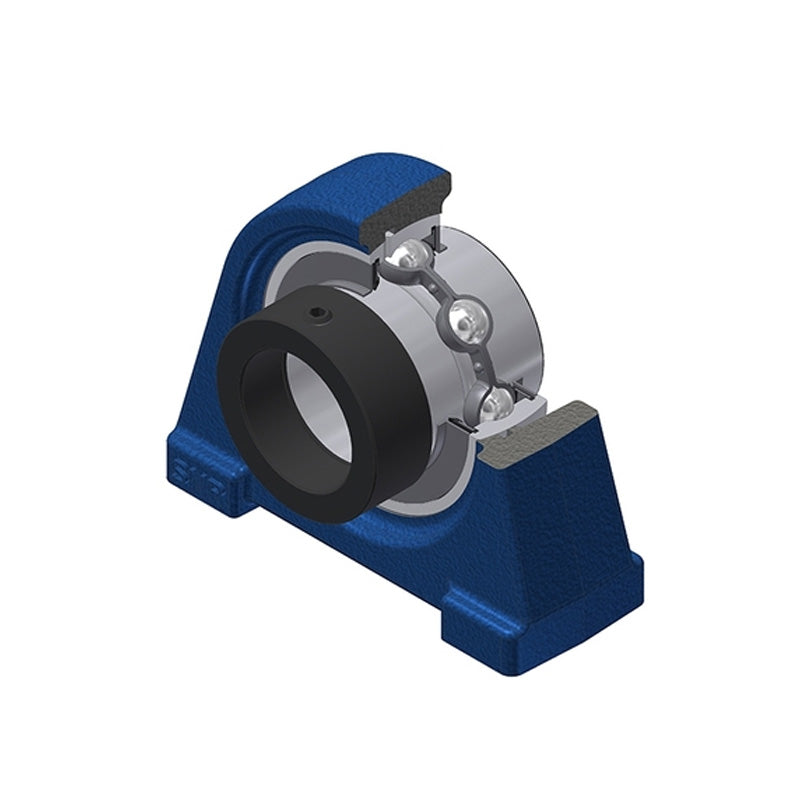

• SNR EXPAE208L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore and Triple Lip Seal
1 1

SKU: EXPAE208L3-SNR

SNR EXPAE208L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore and Triple Lip Seal

SNR EXPAE208L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore and Triple Lip Seal
€80,95 ex VAT
€80,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €61,34
4+ €57,89
9+ €57,20
19+ €56,52
49+ €55,83
99+ €55,14
499+ €51,69
999+ €51,00
1999+ €50,31
2999+ €49,62
4999+ €48,25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXPAE
Bolt Hole Centres:
88.9mm
Technical
--- Dimensions
Shaft diameter 40mm
A 47mm
A1 30mm
B 42.8mm
d1 58mm
E 15mm
H 49.2mm
H1 13mm
H2 99mm
J 88.9mm
L 116mm
L1 27mm
N M12
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.78 kg
