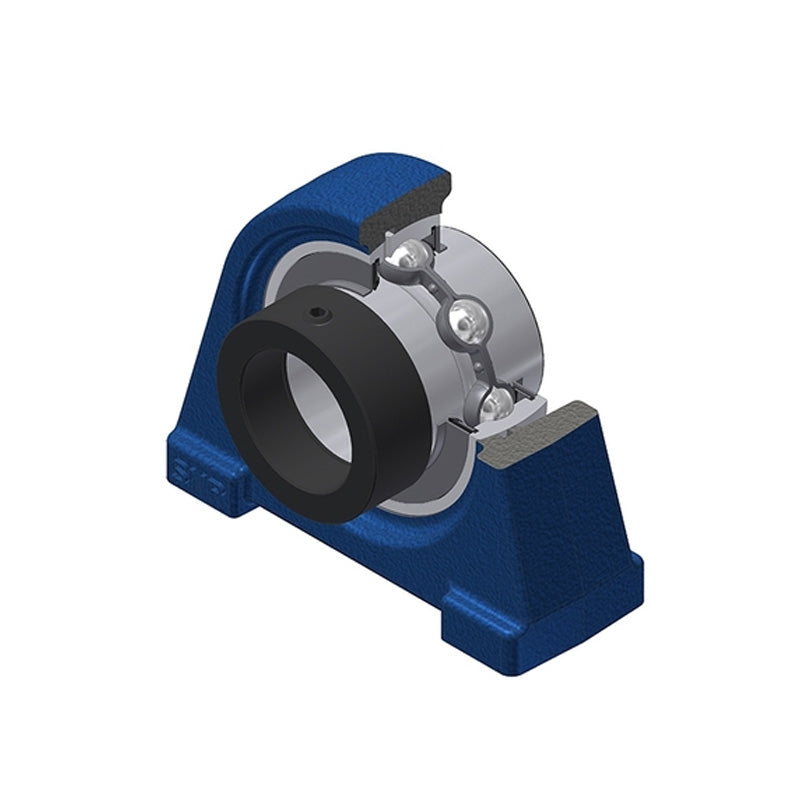

• SNR EXPAE206L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore and Triple Lip Seal - Allow 2-3 Days
1 1

SKU: EXPAE206L3-SNR

SNR EXPAE206L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore and Triple Lip Seal - Allow 2-3 Days

SNR EXPAE206L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore and Triple Lip Seal - Allow 2-3 Days
€64,95 ex VAT
€64,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €49,07
4+ €46,31
9+ €45,76
19+ €45,21
49+ €44,66
99+ €44,10
499+ €41,35
999+ €40,80
1999+ €40,25
2999+ €39,69
4999+ €38,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXPAE
Bolt Hole Centres:
76.2mm
Technical

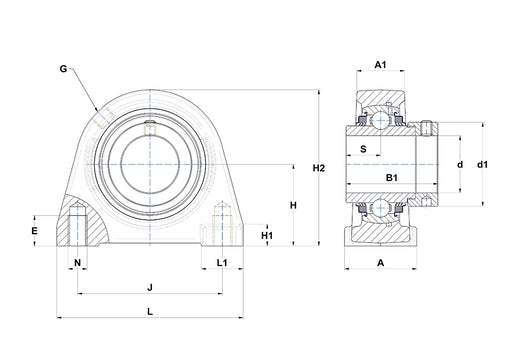

--- Dimensions
Shaft diameter 30mm
A 38mm
A1 25mm
B 36.4mm
d1 44.1mm
E 12.5mm
H 42.9mm
H1 11mm
H2 82mm
J 76.2mm
L 98mm
L1 22mm
N M10
S 18.2mm
G R1/8
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.01 kg
