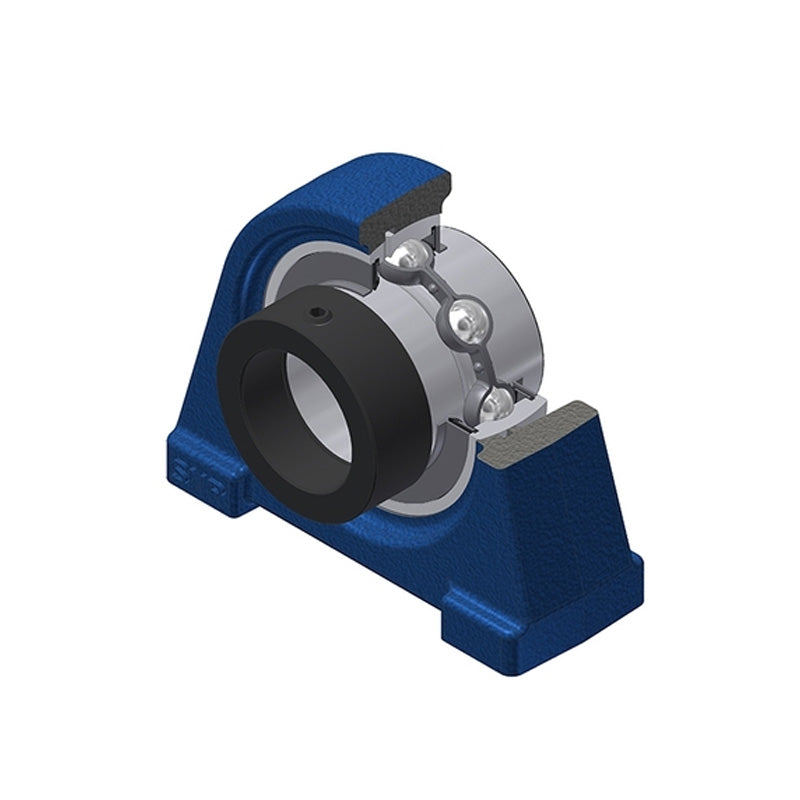

• SNR EXPAE204N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
1 1

SKU: EXPAE204N-SNR

SNR EXPAE204N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR EXPAE204N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
€61,95 ex VAT
€61,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €46,33
4+ €43,72
9+ €43,20
19+ €42,68
49+ €42,16
99+ €41,64
499+ €39,04
999+ €38,52
1999+ €38,00
2999+ €37,48
4999+ €36,44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5XKJU1KT2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EXPAE
Bolt Hole Centres:
50.8mm
Technical

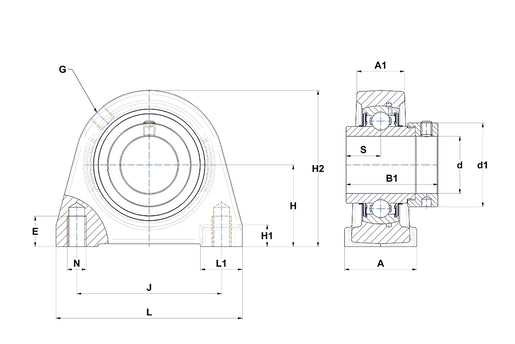

--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 34mm
d1 32.4mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 17mm
G R1/8
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.52 kg
