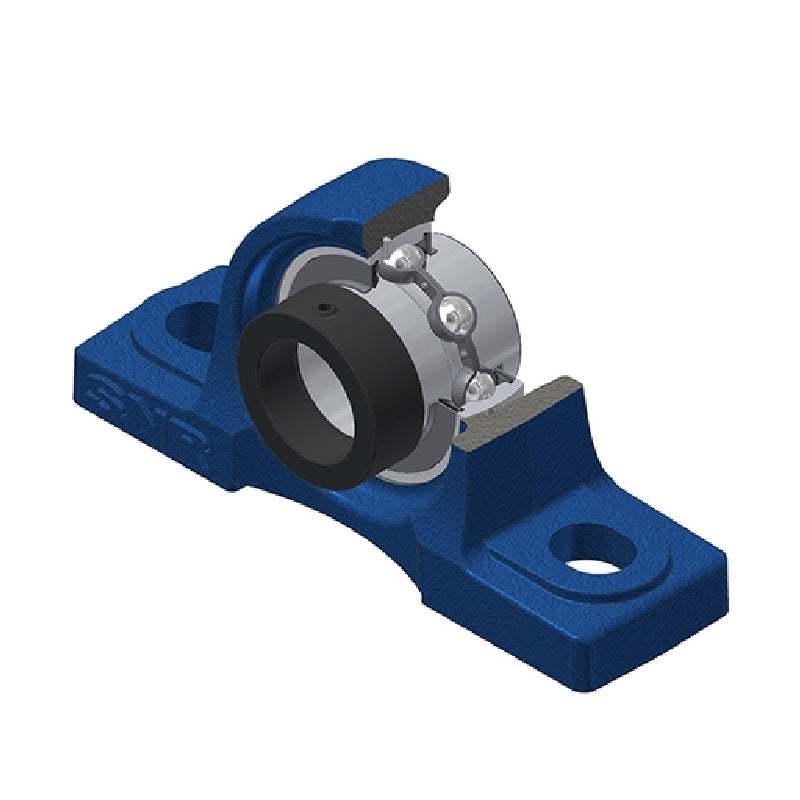

• SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP311-SNR

SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
€127,95 ex VAT
€127,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €97,23
4+ €91,76
9+ €90,67
19+ €89,58
49+ €88,49
99+ €87,39
499+ €81,93
999+ €80,84
1999+ €79,75
2999+ €78,65
4999+ €76,47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXP
Bolt Hole Centres:
236mm
Technical
--- Dimensions
Shaft diameter d 55mm
A 80mm
A1 51mm
B 55.6mm
d1 83mm
H 80mm
H1 30mm
H2 154mm
J 236mm
L 310mm
L1 85mm
N 20mm
N1 38mm
S 27.8mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 71.5 kN
Static load C0 44.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 7.9 kg
