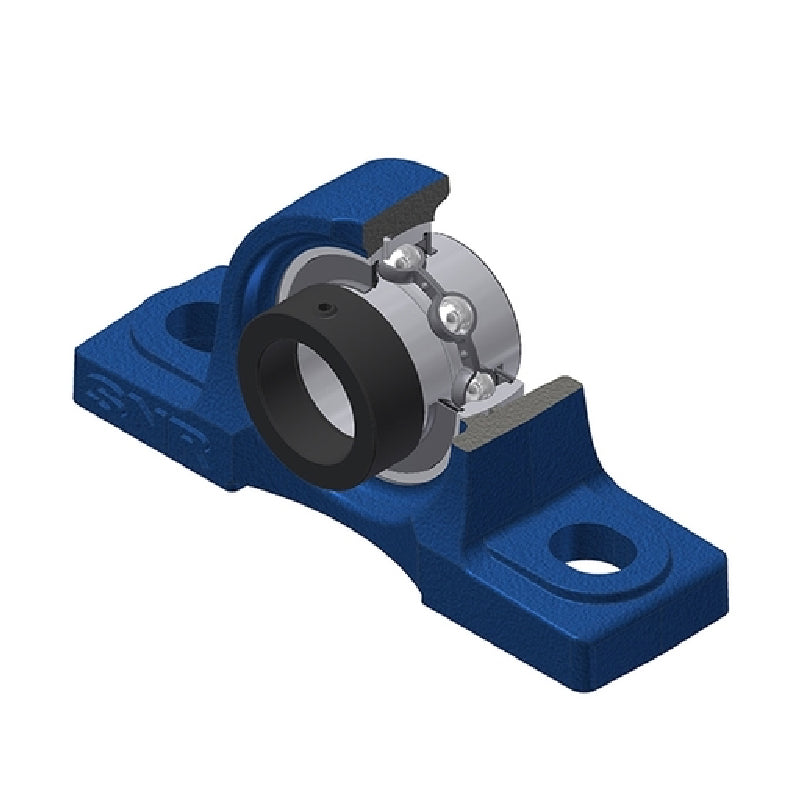

• SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP310-SNR

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
€101,95 ex VAT
€101,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €77,21
4+ €72,87
9+ €72,00
19+ €71,14
49+ €70,27
99+ €69,40
499+ €65,06
999+ €64,20
1999+ €63,33
2999+ €62,46
4999+ €60,73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXP
Bolt Hole Centres:
212mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 75mm
A1 48mm
B 49.2mm
d1 76.2mm
H 75mm
H1 27mm
H2 143mm
J 212mm
L 275mm
L1 75mm
N 20mm
N1 35mm
S 24.6mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 62 kN
Static load C0 37.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.36 kg
