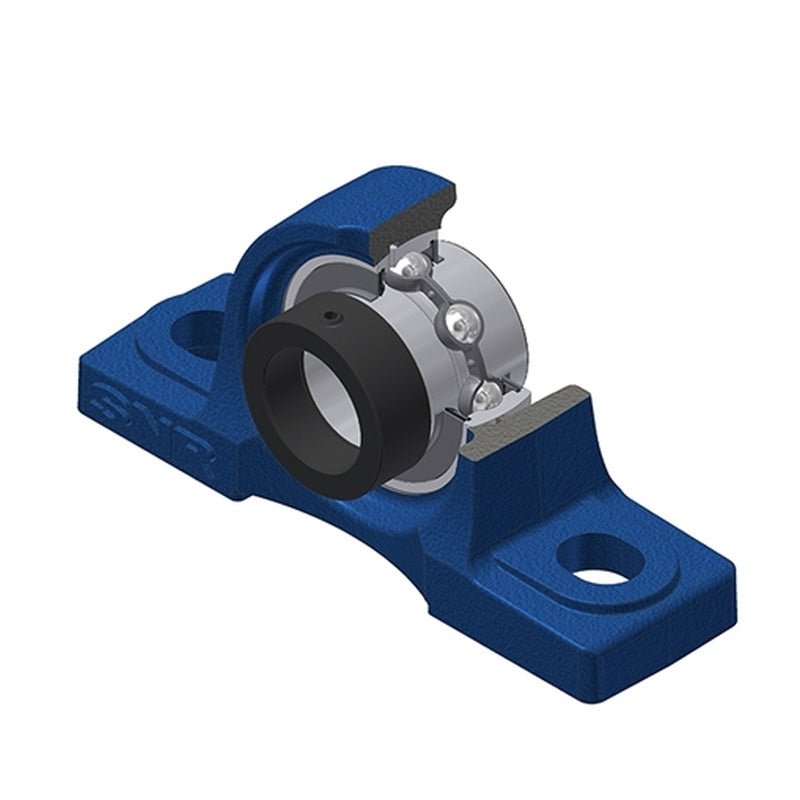

• SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert
1 1

SKU: EXP216-SNR

SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert

SNR EXP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert
€180,95 ex VAT
€180,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €137,26
4+ €129,55
9+ €128,01
19+ €126,46
49+ €124,92
99+ €123,38
499+ €115,67
999+ €114,13
1999+ €112,58
2999+ €111,04
4999+ €107,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
EXP
Bolt Hole Centres:
232mm
Technical
--- Dimensions
Shaft diameter d 80mm
A 78mm
A1 51mm
B 74.6mm
d1 110mm
H 88.9mm
H1 30mm
H2 175mm
J 232mm
L 292mm
L1 91mm
N 25mm
N1 31mm
S 37.3mm
Dz mm
Z mm
G M10x1
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 9.32 kg
