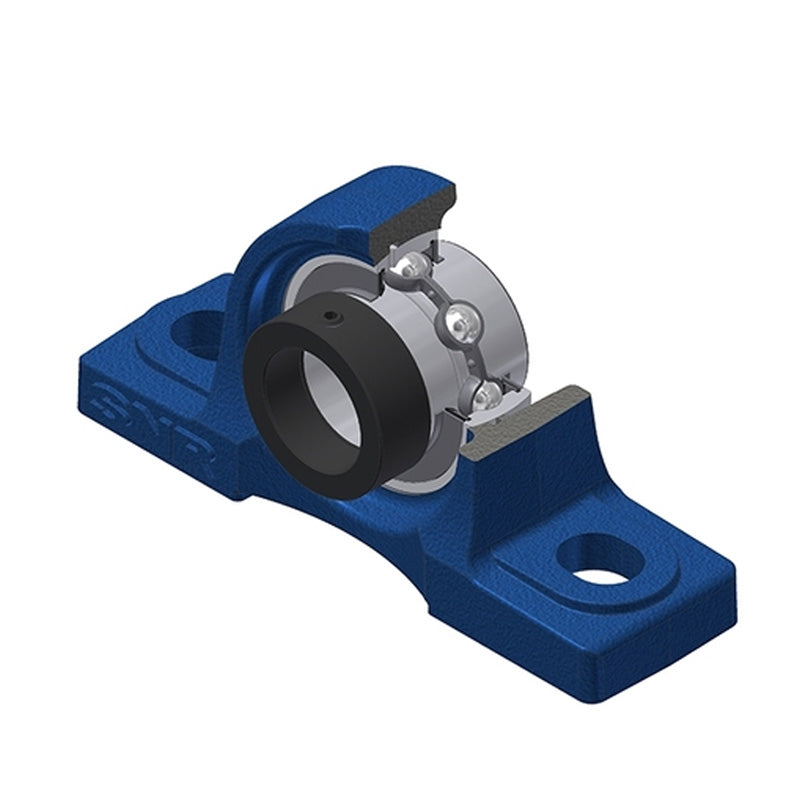

• SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP211-32-SNR

SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days

SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days
€74,95 ex VAT
€74,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €56,62
4+ €53,44
9+ €52,80
19+ €52,17
49+ €51,53
99+ €50,89
499+ €47,71
999+ €47,08
1999+ €46,44
2999+ €45,80
4999+ €44,53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
50.8mm = 2 Inch
Style:
EXP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter d 2 inch
A 60mm
A1 40mm
B 55.4mm
d1 74.5mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 27.7mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 4.18 kg
