• SNR EXP210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP210N-SNR

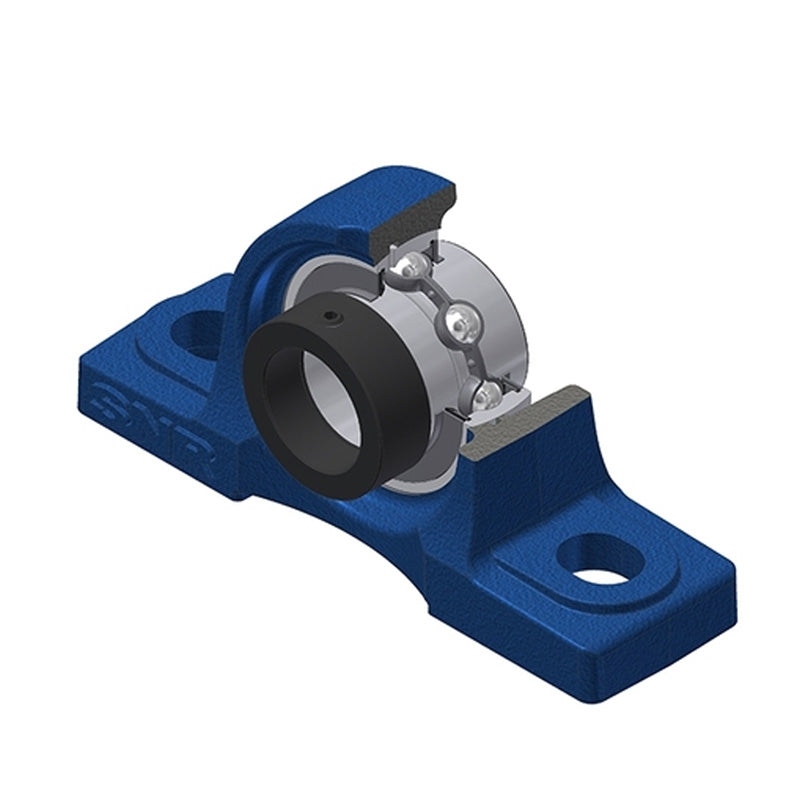

SNR EXP210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
€70,95 ex VAT
€70,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €53,48
4+ €50,47
9+ €49,87
19+ €49,27
49+ €48,67
99+ €48,07
499+ €45,07
999+ €44,47
1999+ €43,86
2999+ €43,26
4999+ €42,06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXP
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 60mm
A1 39mm
B 49.2mm
d1 67.2mm
H 57.2mm
H1 22mm
H2 114mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 24.6mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.01 kg
