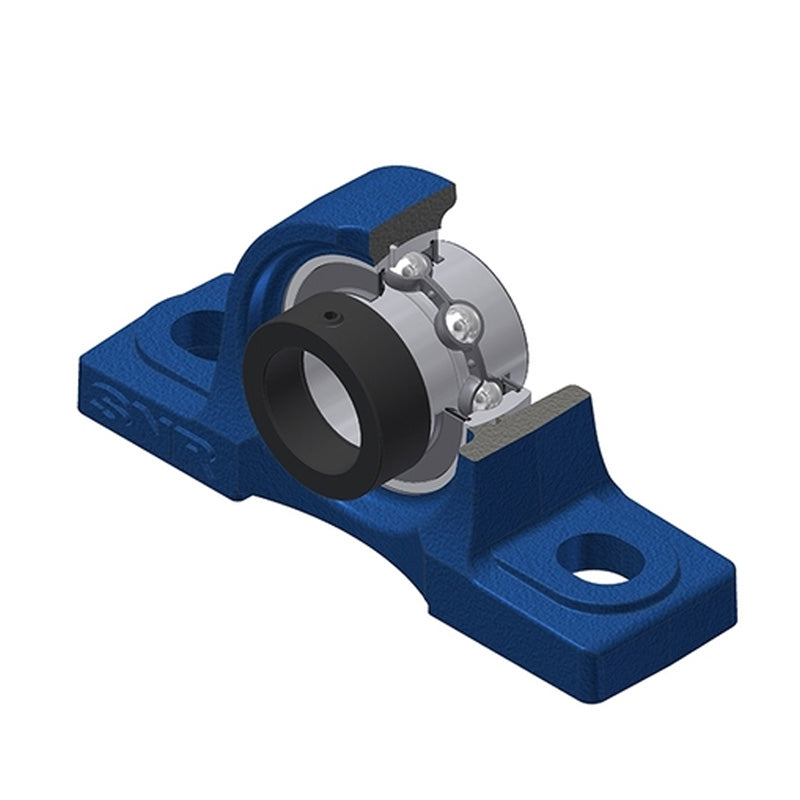

• SNR EXP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert
1 1

SKU: EXP210-SNR

SNR EXP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert

SNR EXP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert
€65,95 ex VAT
€65,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €49,76
4+ €46,96
9+ €46,40
19+ €45,84
49+ €45,28
99+ €44,73
499+ €41,93
999+ €41,37
1999+ €40,81
2999+ €40,25
4999+ €39,13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXP
Bolt Hole Centres:
159mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 60mm
A1 39mm
B 49.2mm
d1 67.2mm
H 57.2mm
H1 22mm
H2 114mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 24.6mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.21 kg
