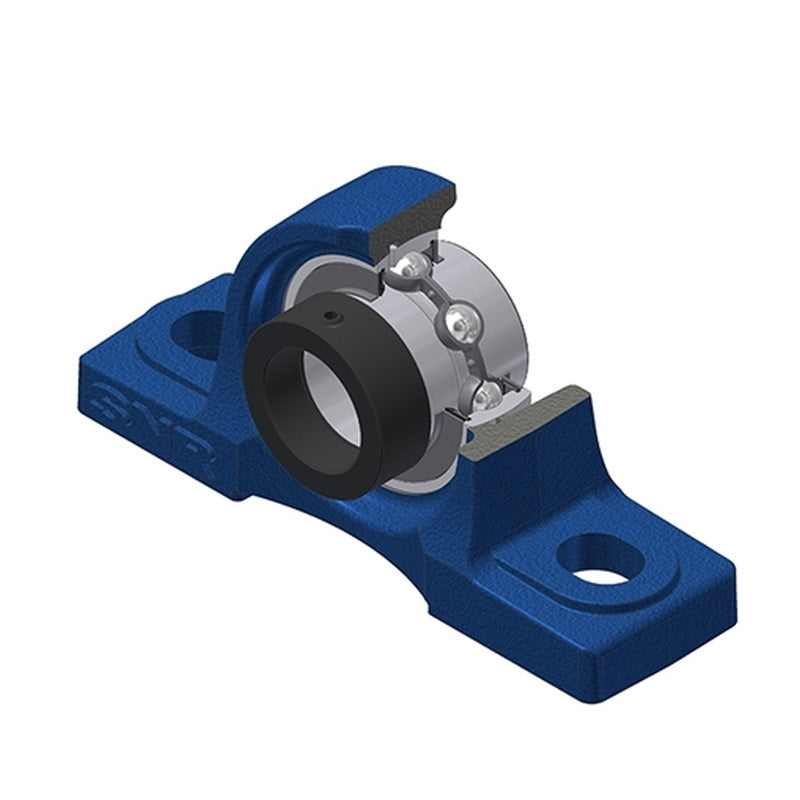

• SNR EXP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP209-SNR

SNR EXP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
€56,95 ex VAT
€56,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €42,89
4+ €40,48
9+ €40,00
19+ €39,52
49+ €39,04
99+ €38,56
499+ €36,15
999+ €35,66
1999+ €35,18
2999+ €34,70
4999+ €33,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EXP
Bolt Hole Centres:
146mm
Technical

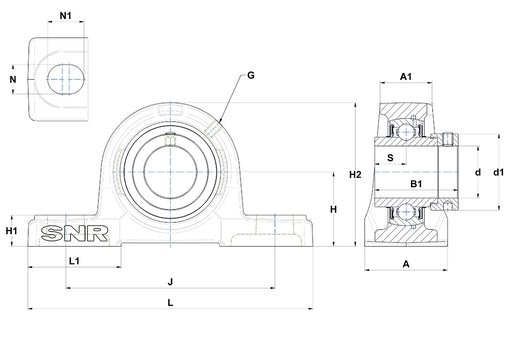

--- Dimensions
Shaft diameter d 45mm
A 54mm
A1 37mm
B 42.8mm
d1 62mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 21.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.57 kg
