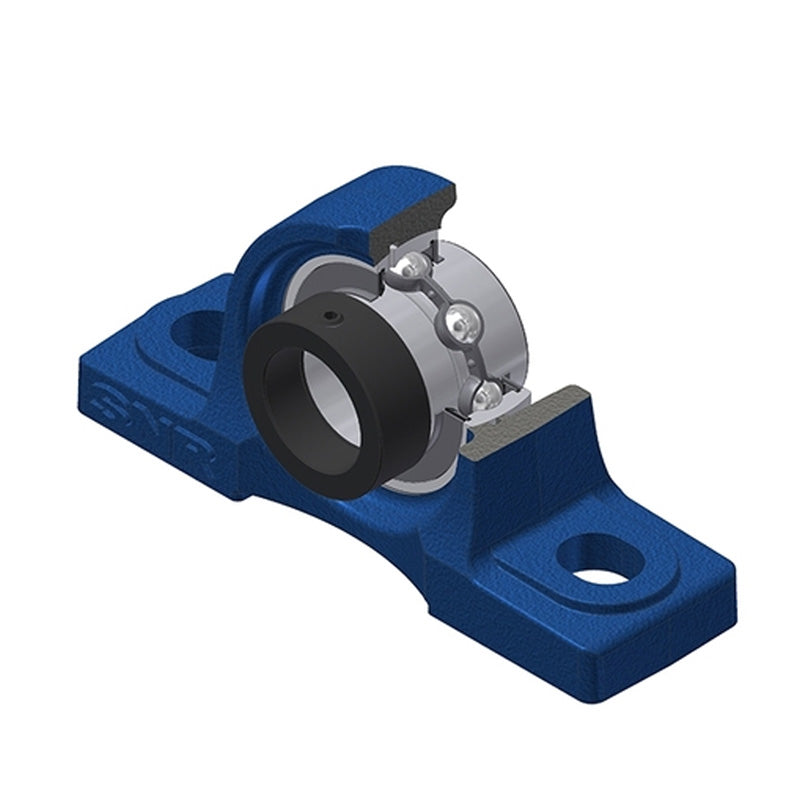

• SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP208-SNR

SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
€49,95 ex VAT
€49,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €37,75
4+ €35,63
9+ €35,20
19+ €34,78
49+ €34,35
99+ €33,93
499+ €31,81
999+ €31,38
1999+ €30,96
2999+ €30,54
4999+ €29,69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 54mm
A1 34mm
B 42.8mm
d1 58mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 21.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.28 kg
