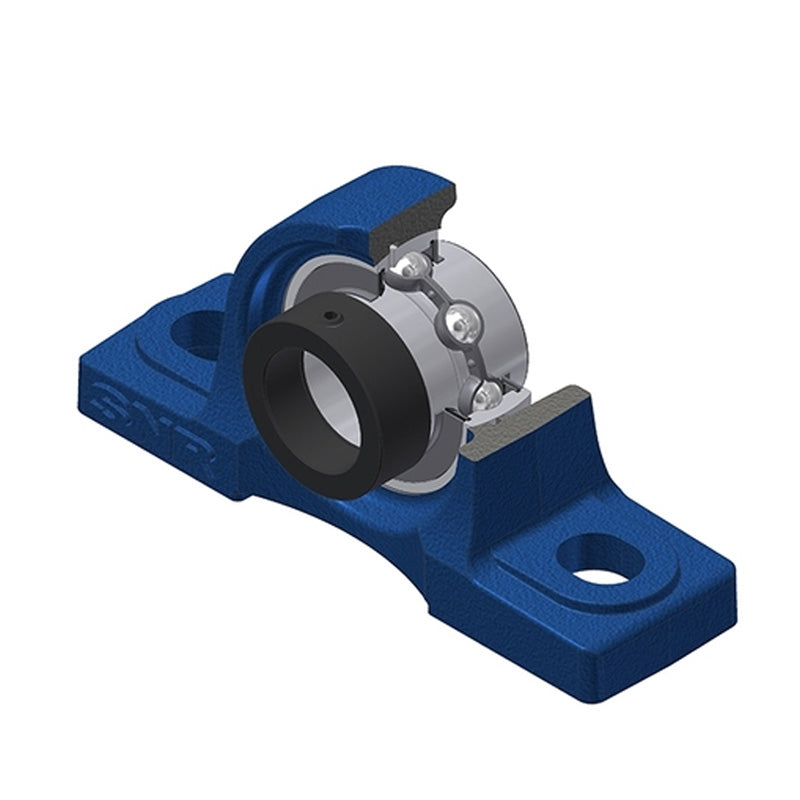

• SNR EXP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP206-SNR

SNR EXP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
€40,95 ex VAT
€40,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,79
4+ €29,06
9+ €28,72
19+ €28,37
49+ €28,02
99+ €27,68
499+ €25,95
999+ €25,60
1999+ €25,26
2999+ €24,91
4999+ €24,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXP
Bolt Hole Centres:
121mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 48mm
A1 30mm
B 36.4mm
d1 44.1mm
H 42.9mm
H1 18mm
H2 83mm
J 121mm
L 165mm
L1 54mm
N 17mm
N1 21mm
S 18.2mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.45 kg
