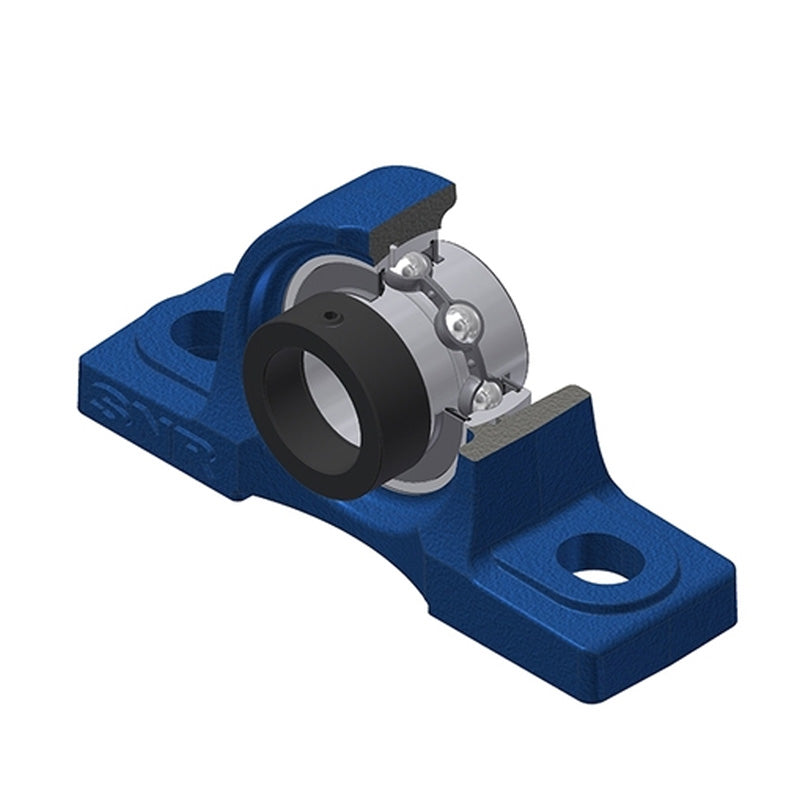

• SNR EXP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXP205-SNR

SNR EXP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,69
4+ €25,19
9+ €24,89
19+ €24,59
49+ €24,29
99+ €23,99
499+ €22,49
999+ €22,19
1999+ €21,89
2999+ €21,59
4999+ €20,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
YDG7SRB3VN
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXP
Bolt Hole Centres:
105mm
Technical

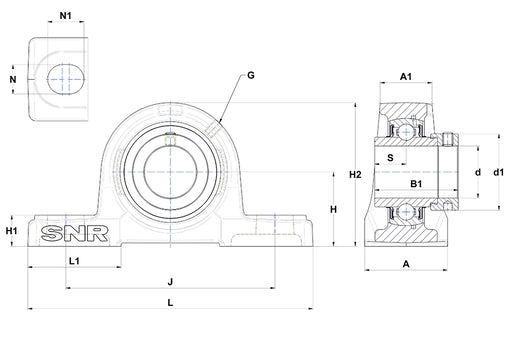

--- Dimensions
Shaft diameter d 25mm
A 38mm
A1 26mm
B 34.8mm
d1 37.4mm
H 36.5mm
H1 16mm
H2 70mm
J 105mm
L 140mm
L1 42mm
N 13mm
N1 19mm
S 17.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.85 kg
