• SNR EXFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFLZ210-SNR

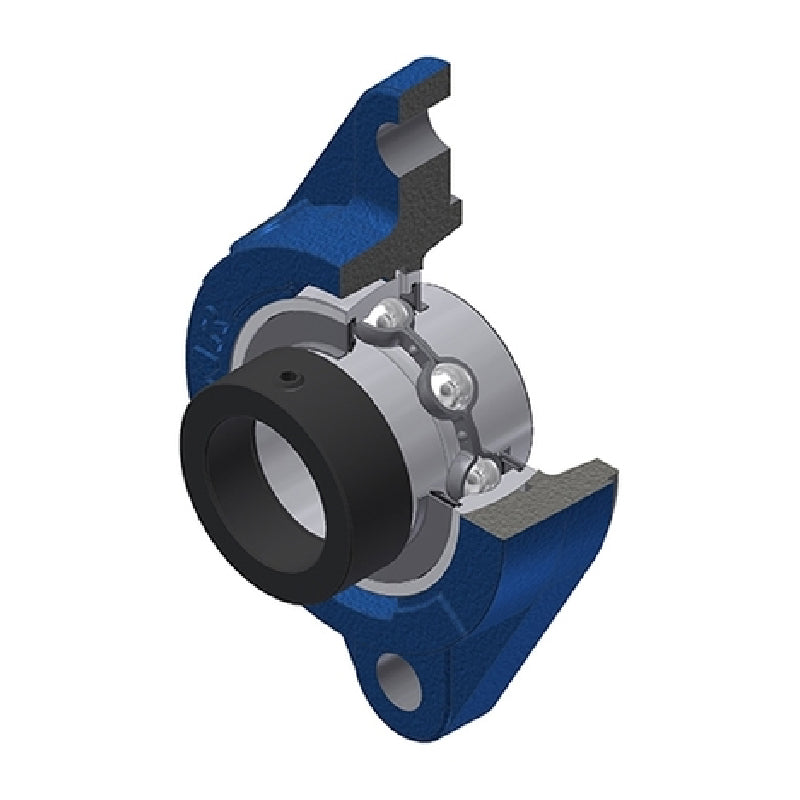

SNR EXFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
€62,95 ex VAT
€62,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €47,19
4+ €44,54
9+ €44,01
19+ €43,48
49+ €42,95
99+ €42,42
499+ €39,76
999+ €39,23
1999+ €38,70
2999+ €38,17
4999+ €37,11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R1IVYMPF3G
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXFLZ
Bolt Hole Centres:
157mm
Technical

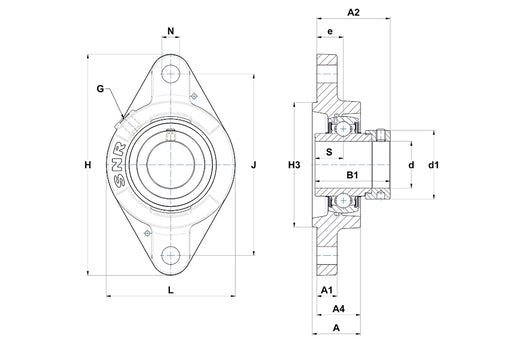

--- Dimensions
Shaft diameter d 50mm
A 41mm
A1 13mm
A2 62.1mm
A4 37mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 24mm
H 190mm
H3 105mm
J 157mm
L 116mm
N 14mm
S 24.6mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.31 kg
