• SNR EXFLZ205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert
1 1

SKU: EXFLZ205-SNR

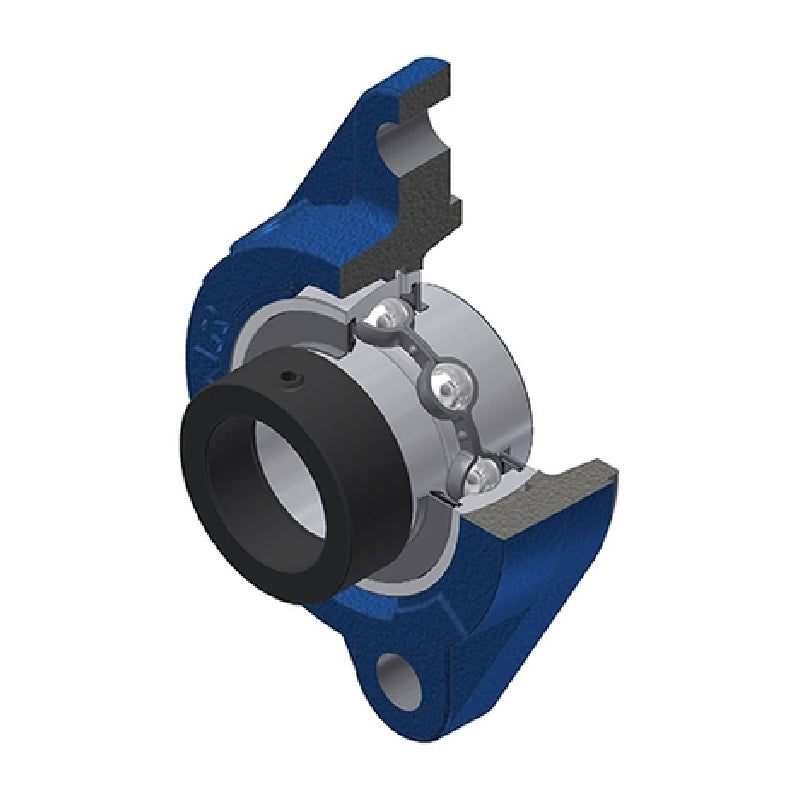

SNR EXFLZ205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert

SNR EXFLZ205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,17
4+ €25,64
9+ €25,34
19+ €25,03
49+ €24,73
99+ €24,42
499+ €22,90
999+ €22,59
1999+ €22,29
2999+ €21,98
4999+ €21,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R1IVYMPF3G
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXFLZ
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 32.5mm
A1 12mm
A2 45.9mm
A4 29mm
B 34.8mm
B1 44.3mm
d1 37.4mm
e 19mm
H 124mm
H3 60mm
J 99mm
L 70mm
N 11.5mm
S 17.4mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.75 kg
