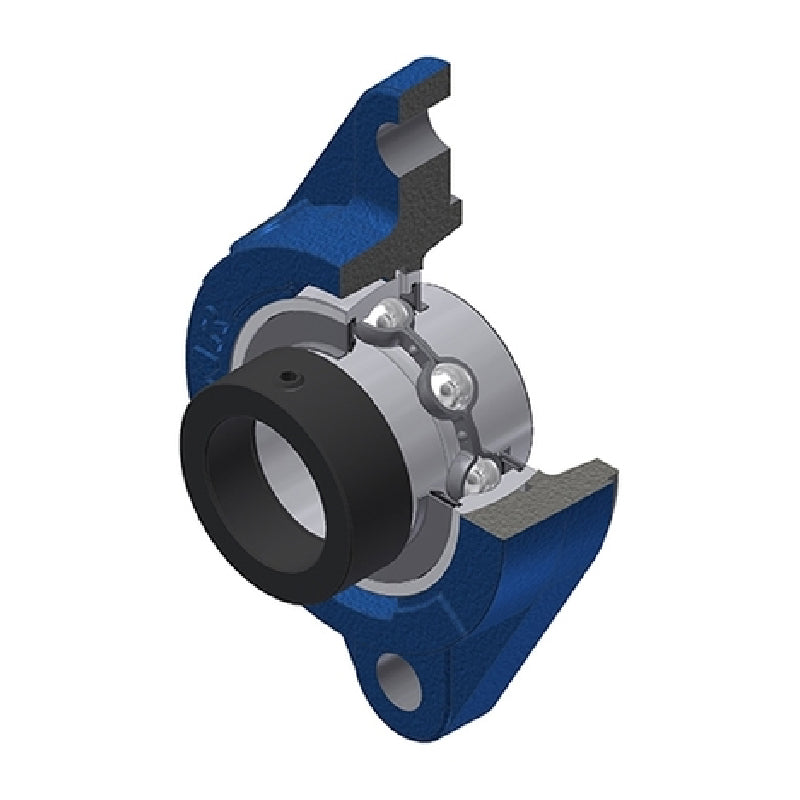

• SNR EXFLZ204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFLZ204-SNR

SNR EXFLZ204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLZ204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
€32,95 ex VAT
€32,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €24,78
4+ €23,39
9+ €23,11
19+ €22,83
49+ €22,56
99+ €22,28
499+ €20,88
999+ €20,61
1999+ €20,33
2999+ €20,05
4999+ €19,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R1IVYMPF3G
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EXFLZ
Bolt Hole Centres:
90mm
Technical

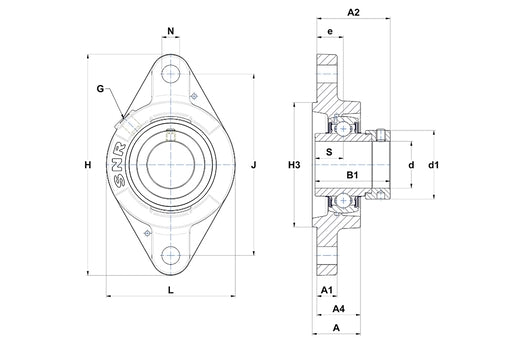

--- Dimensions
Shaft diameter d 20mm
A 32mm
A1 10mm
A2 45.5mm
A4 28.5mm
B 34mm
B1 43.5mm
d1 32.4mm
e 19mm
H 112.5mm
H3 55mm
J 90mm
L 60.5mm
N 11.5mm
S 17mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.52 kg
