• SNR EXFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFLE210-SNR

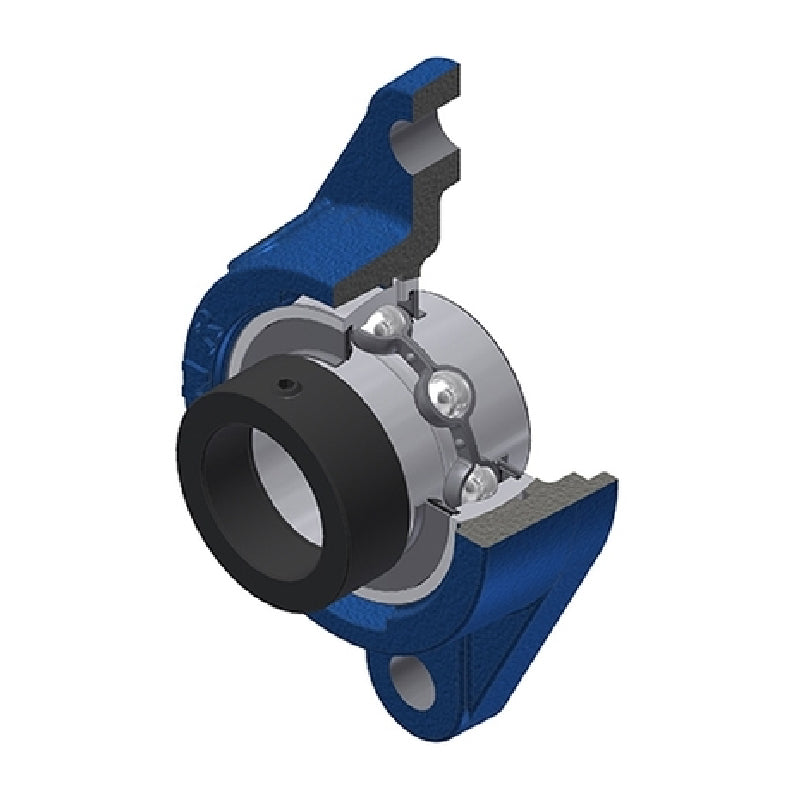

SNR EXFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
€58,95 ex VAT
€58,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €44,61
4+ €42,10
9+ €41,60
19+ €41,10
49+ €40,60
99+ €40,10
499+ €37,59
999+ €37,09
1999+ €36,59
2999+ €36,09
4999+ €35,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TLMM4QWKLA
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXFLE
Bolt Hole Centres:
157mm
Technical

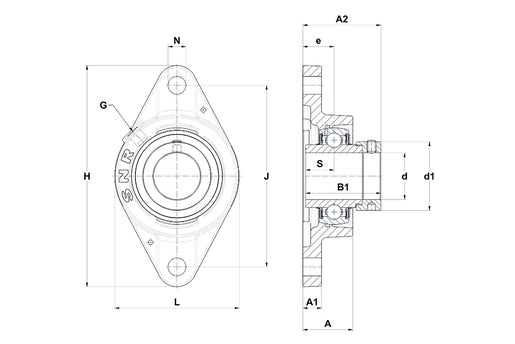

--- Dimensions
Shaft diameter d 50mm
A 41.6mm
A1 13mm
A2 66.1mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 28mm
H 190mm
J 157mm
L 116mm
N 18mm
S 24.6mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.31 kg
