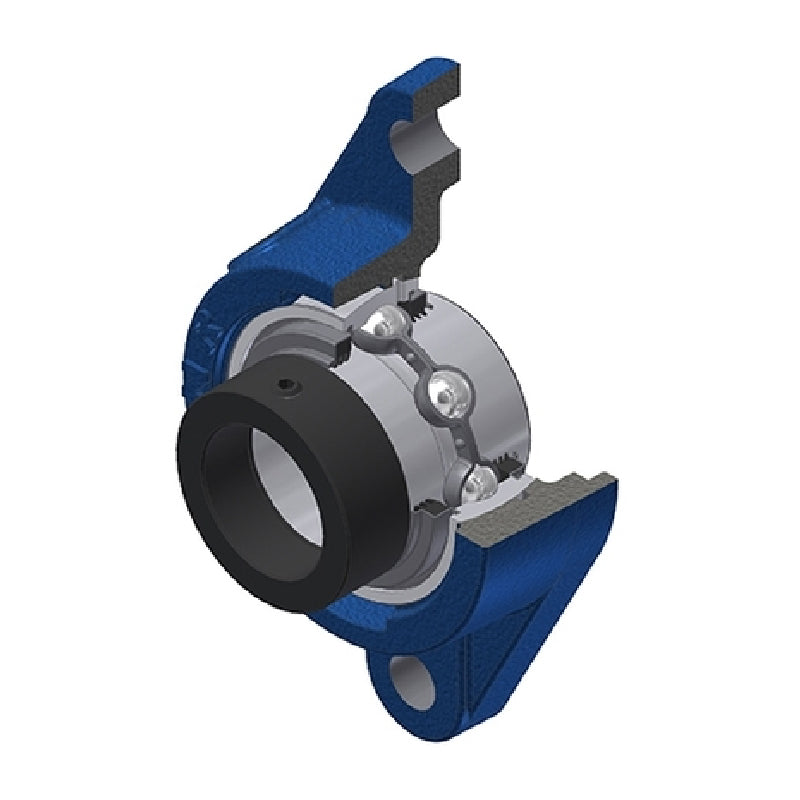

• SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal
1 1

SKU: EXFLE207L3-SNR

SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal

SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal
€58,95 ex VAT
€58,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €44,61
4+ €42,10
9+ €41,60
19+ €41,10
49+ €40,60
99+ €40,10
499+ €37,59
999+ €37,09
1999+ €36,59
2999+ €36,09
4999+ €35,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TLMM4QWKLA
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXFLE
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter d 35mm
A 33.7mm
A1 12.5mm
A2 53.3mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 21mm
H 155mm
J 130mm
L 92mm
N 14mm
S 18.8mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.3 kg
