• SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert
1 1

SKU: EXFLE206-SNR

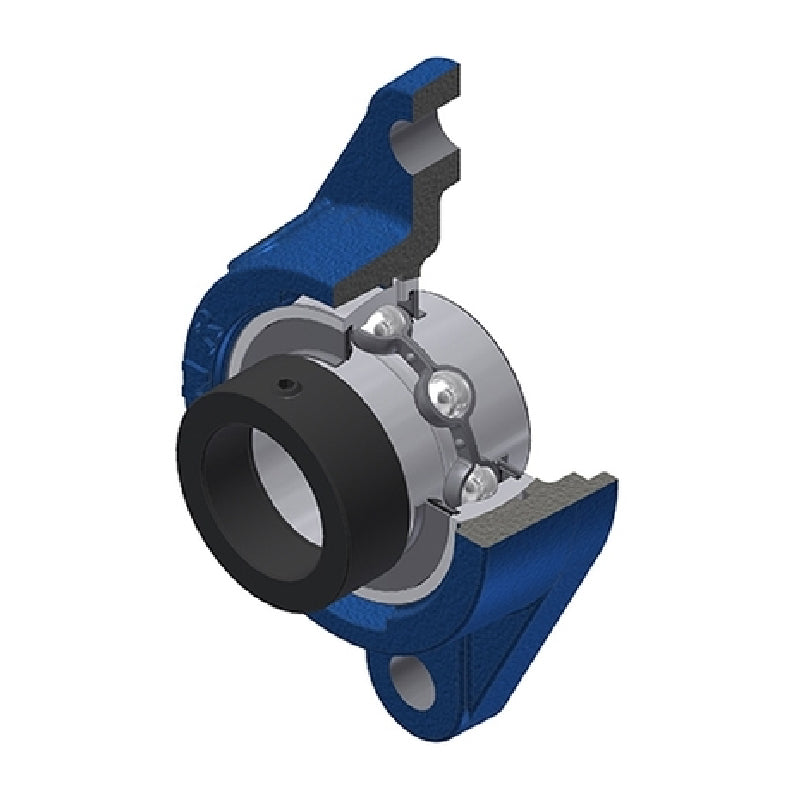

SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert

SNR EXFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,69
4+ €25,19
9+ €24,89
19+ €24,59
49+ €24,29
99+ €23,99
499+ €22,49
999+ €22,19
1999+ €21,89
2999+ €21,59
4999+ €20,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TLMM4QWKLA
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXFLE
Bolt Hole Centres:
116.5mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 50.1mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 18.2mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.91 kg
