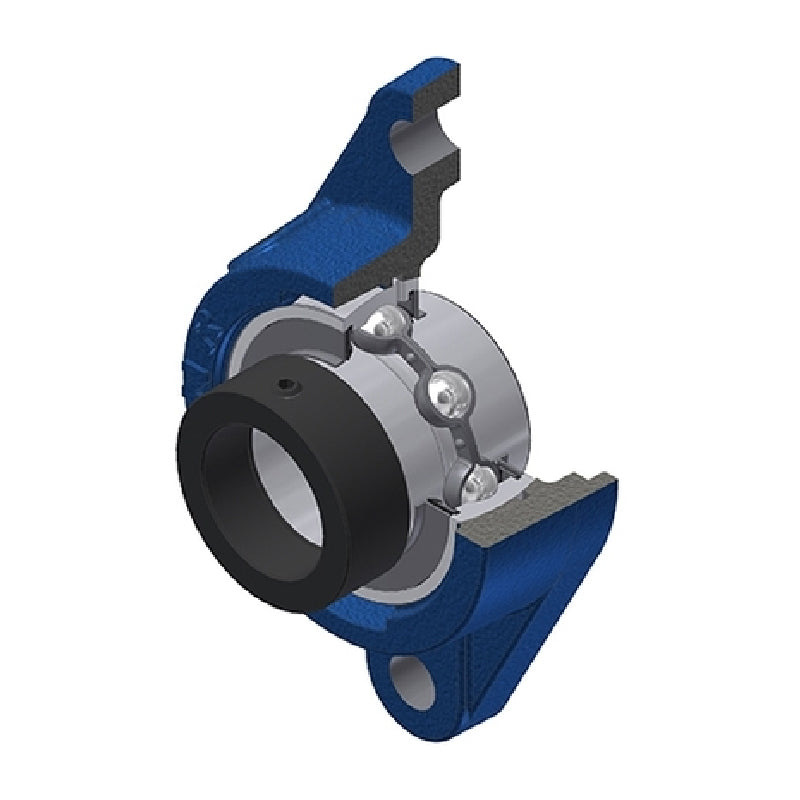

• SNR EXFLE205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFLE205-SNR

SNR EXFLE205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLE205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
€30,95 ex VAT
€30,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €22,88
4+ €21,59
9+ €21,33
19+ €21,08
49+ €20,82
99+ €20,56
499+ €19,28
999+ €19,02
1999+ €18,76
2999+ €18,51
4999+ €17,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TLMM4QWKLA
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXFLE
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 29.3mm
A1 11mm
A2 45.9mm
B 34.8mm
B1 44.3mm
d1 37.4mm
e 19mm
H 124mm
J 99mm
L 70mm
N 11.5mm
S 17.4mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
