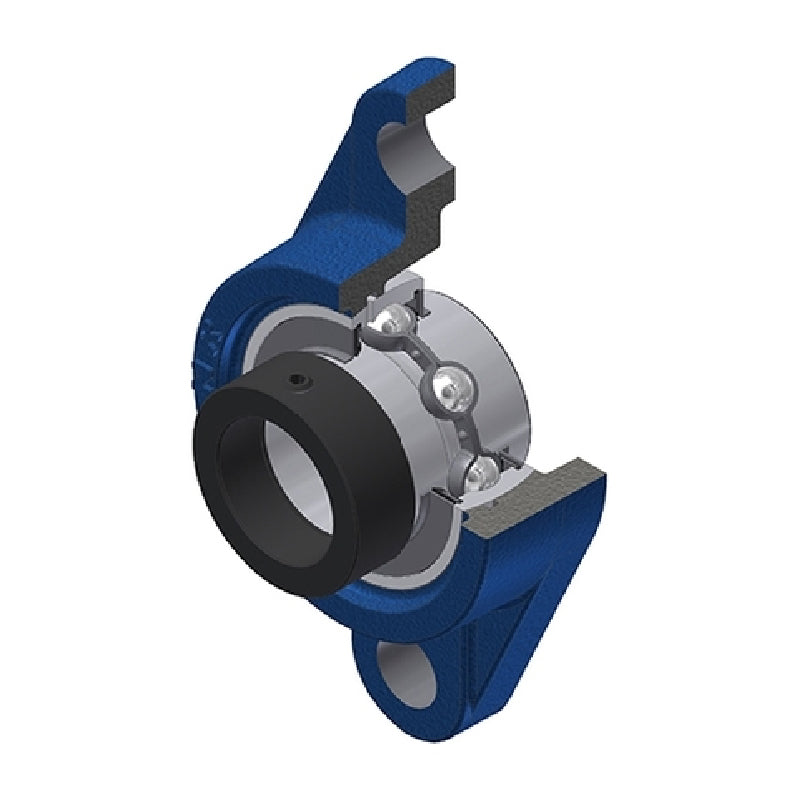

• SNR EXFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFL210-SNR

SNR EXFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
€65,95 ex VAT
€65,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €49,76
4+ €46,96
9+ €46,40
19+ €45,84
49+ €45,28
99+ €44,73
499+ €41,93
999+ €41,37
1999+ €40,81
2999+ €40,25
4999+ €39,13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
8HCJ3KYXVW
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXFL
Bolt Hole Centres:
157mm
Technical

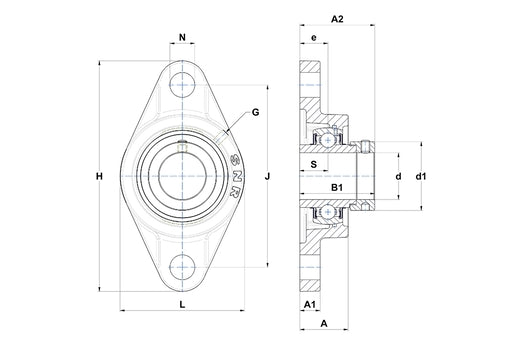

--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 16mm
A2 60.1mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 22mm
H 197mm
J 157mm
L 115mm
N 19mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.4 kg
