• SNR EXFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFL208-SNR

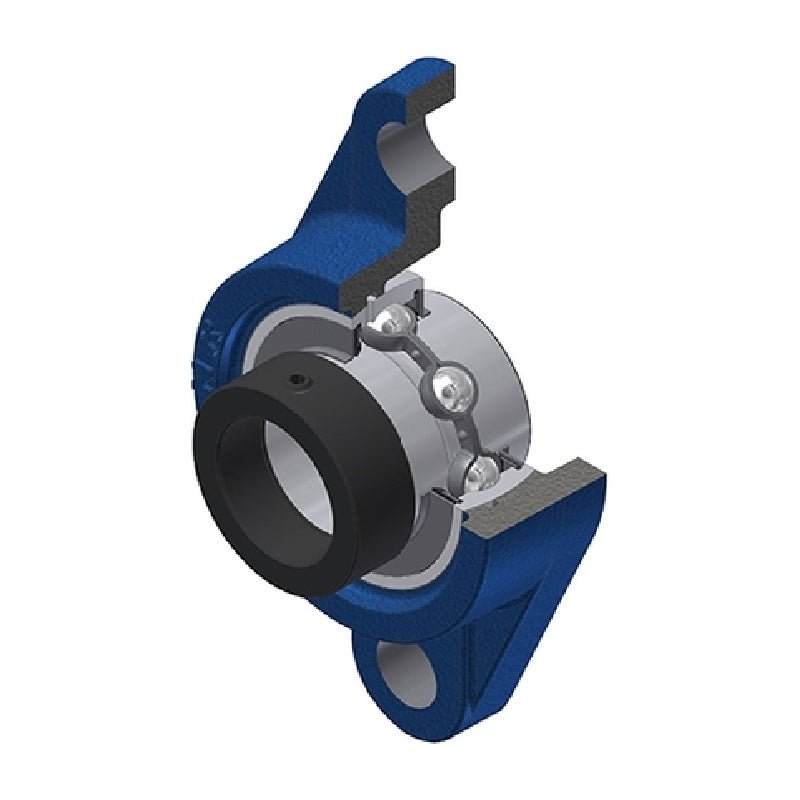

SNR EXFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
€49,95 ex VAT
€49,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €37,75
4+ €35,63
9+ €35,20
19+ €34,78
49+ €34,35
99+ €33,93
499+ €31,81
999+ €31,38
1999+ €30,96
2999+ €30,54
4999+ €29,69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
8HCJ3KYXVW
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXFL
Bolt Hole Centres:
144mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 14mm
A2 55.9mm
B 42.8mm
B1 56.3mm
d1 58mm
e 21mm
H 175mm
J 144mm
L 100mm
N 16mm
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.62 kg
