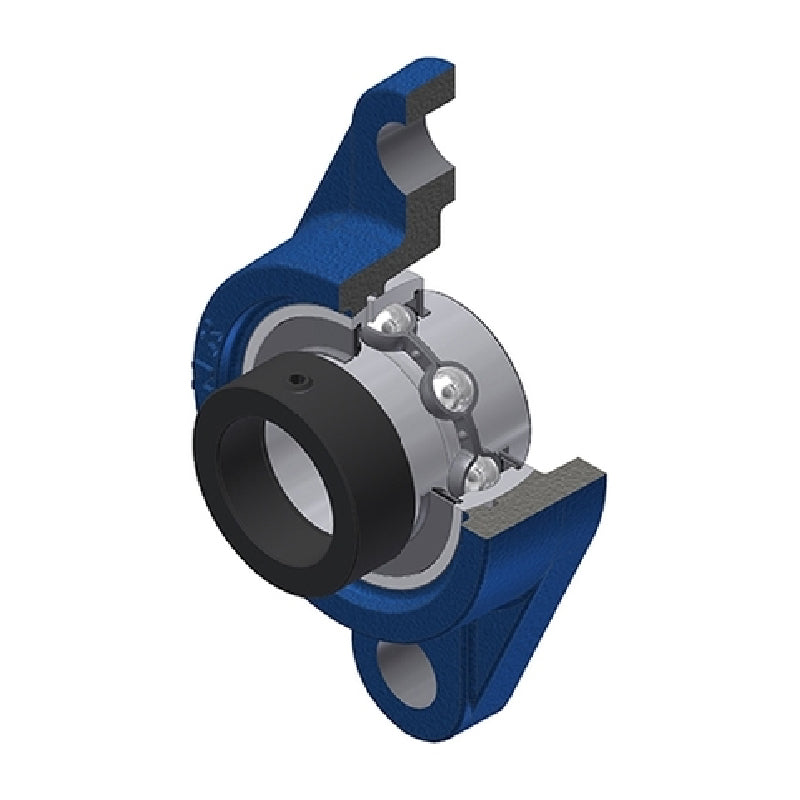

• SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFL206-SNR

SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
€40,95 ex VAT
€40,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,79
4+ €29,06
9+ €28,72
19+ €28,37
49+ €28,02
99+ €27,68
499+ €25,95
999+ €25,60
1999+ €25,26
2999+ €24,91
4999+ €24,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
8HCJ3KYXVW
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXFL
Bolt Hole Centres:
117mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 31mm
A1 13mm
A2 48.1mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e 18mm
H 148mm
J 117mm
L 80mm
N 16mm
S 18.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.98 kg
