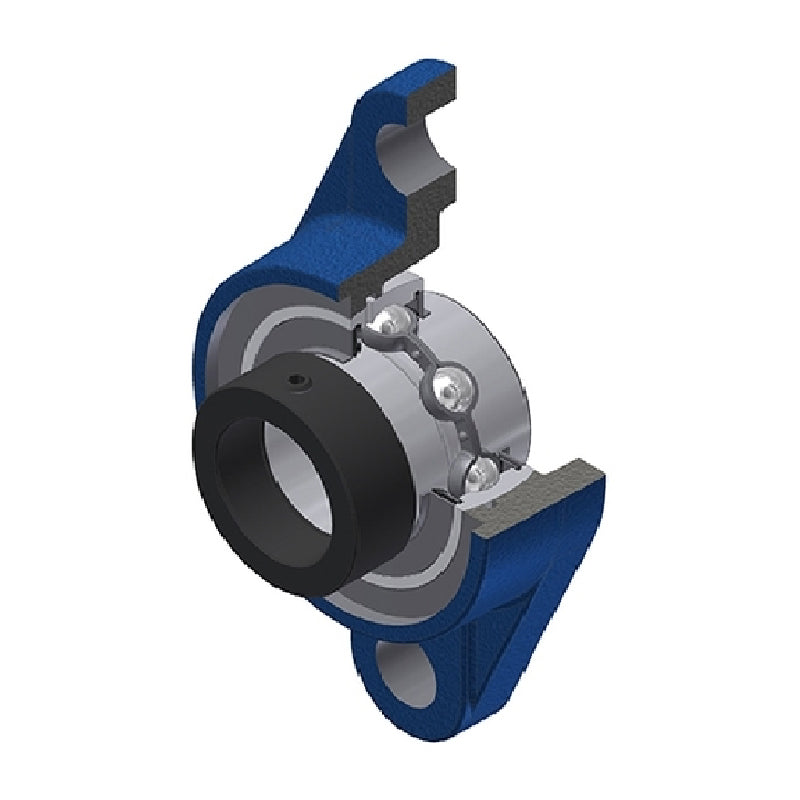

• SNR EXFL205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFL205N-SNR

SNR EXFL205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL205N Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
€38,95 ex VAT
€38,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €28,98
4+ €27,35
9+ €27,02
19+ €26,70
49+ €26,37
99+ €26,05
499+ €24,42
999+ €24,09
1999+ €23,77
2999+ €23,44
4999+ €22,79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
8HCJ3KYXVW
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXFL
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 13mm
A2 42.9mm
B 34.8mm
B1 44.3mm
d1 37.4mm
e 16mm
H 130mm
J 99mm
L 68mm
N 16mm
S 17.4mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
