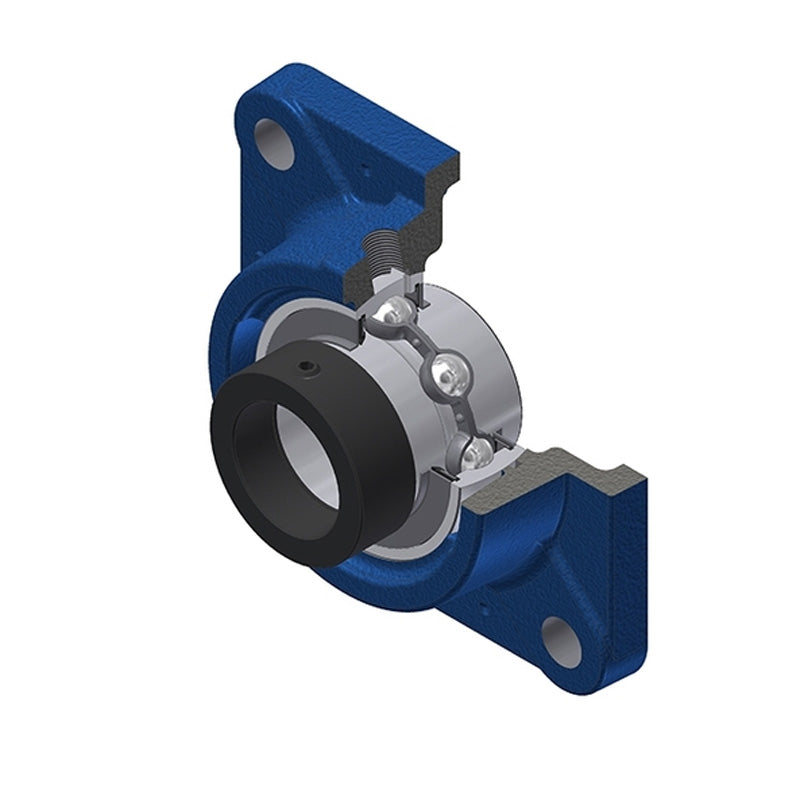

• SNR EXFE218 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE218-SNR

SNR EXFE218 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE218 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Eccentric Collar Insert - Allow 2-3 Days
€291,95 ex VAT
€291,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €221,14
4+ €208,72
9+ €206,23
19+ €203,75
49+ €201,26
99+ €198,78
499+ €186,35
999+ €183,87
1999+ €181,38
2999+ €178,90
4999+ €173,93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
90mm
Style:
EXFE
Bolt Hole Centres:
187mm
Technical
--- Dimensions
Shaft diameter 90mm
A 45mm
A1 22mm
A2 71.8mm
B 55mm
B1 72.5mm
d1 120mm
e 23.8mm
J 187mm
L 235mm
N 23mm
S 24.5mm
G R1/8″
--- Load rating
Dynamic load C 96 kN
Static load C0 71.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 10.84 kg
