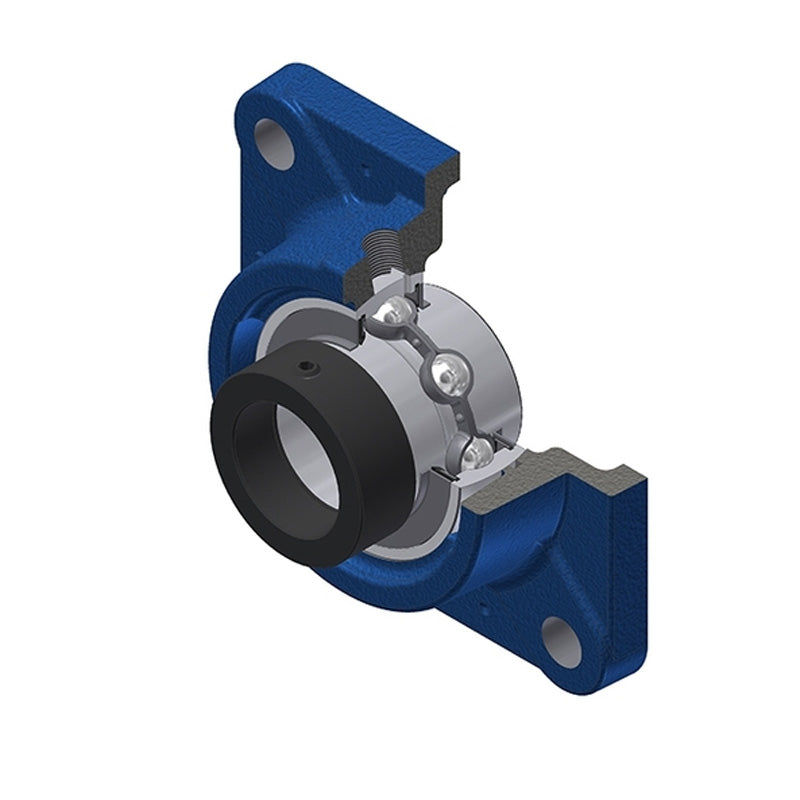

• SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE215-SNR

SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
€161,95 ex VAT
€161,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €122,96
4+ €116,05
9+ €114,67
19+ €113,29
49+ €111,91
99+ €110,53
499+ €103,62
999+ €102,24
1999+ €100,86
2999+ €99,47
4999+ €96,71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
75mm
Style:
EXFE
Bolt Hole Centres:
153mm
Technical
--- Dimensions
Shaft diameter 75mm
A 59mm
A1 20mm
A2 96.1mm
B 74.6mm
B1 92.1mm
d1 102mm
e 41.3mm
J 153mm
L 197mm
N 23mm
S 37.3mm
G R1/8″
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.89 kg
