• SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE212-SNR

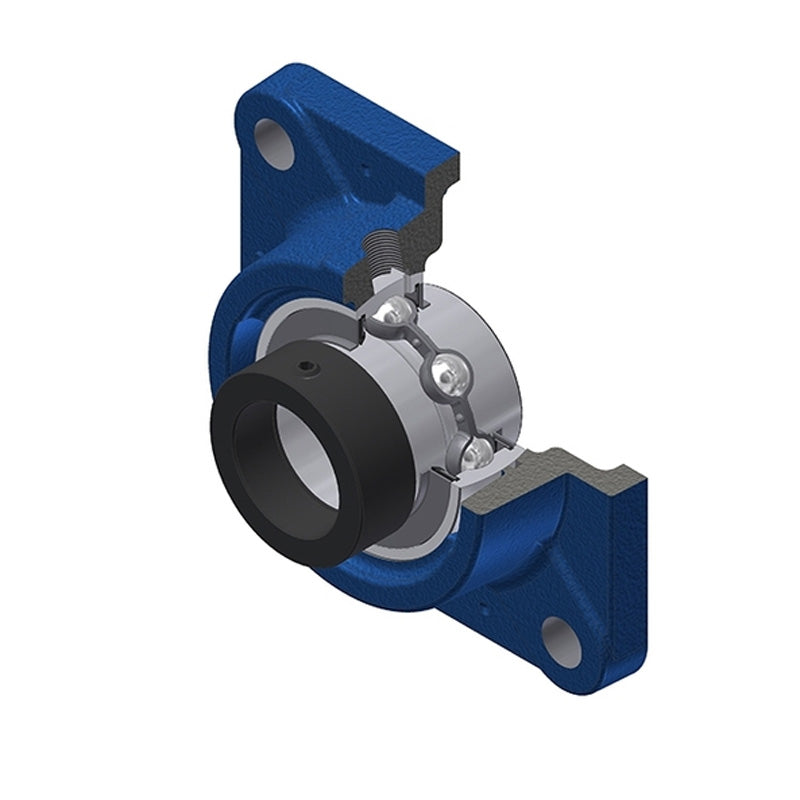

SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
€87,95 ex VAT
€87,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €66,49
4+ €62,75
9+ €62,01
19+ €61,26
49+ €60,51
99+ €59,76
499+ €56,03
999+ €55,28
1999+ €54,53
2999+ €53,79
4999+ €52,29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
EXFE
Bolt Hole Centres:
143mm
Technical
--- Dimensions
Shaft diameter 60mm
A 53.5mm
A1 16mm
A2 80.8mm
B 61.8mm
B1 77.7mm
d1 82mm
e 34mm
J 143mm
L 175mm
N 18mm
S 30.9mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.2 kg
