• SNR EXFE208 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE208-SNR

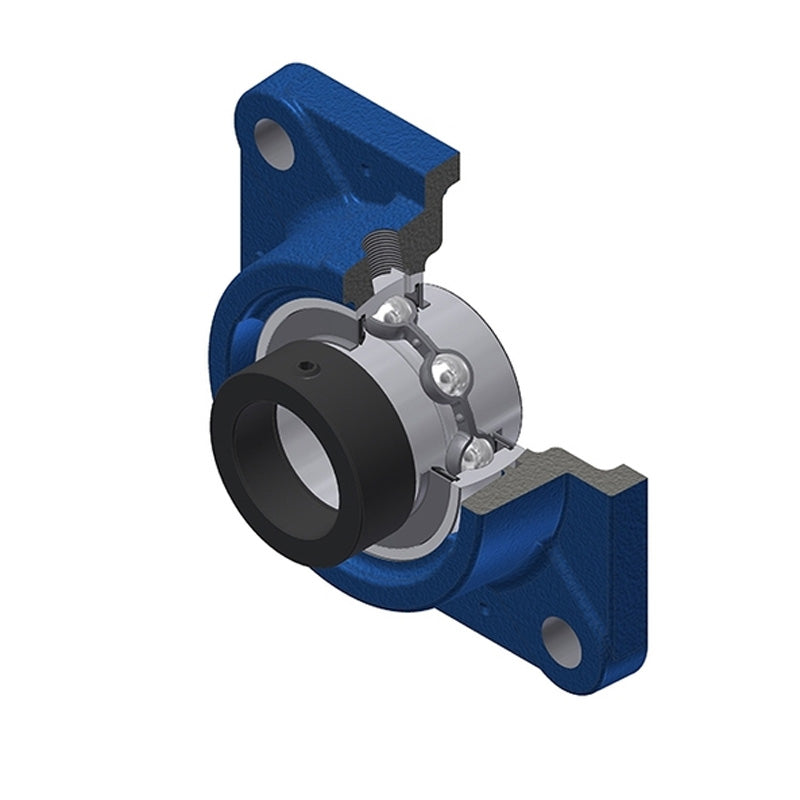

SNR EXFE208 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE208 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
€45,95 ex VAT
€45,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €34,31
4+ €32,39
9+ €32,00
19+ €31,62
49+ €31,23
99+ €30,84
499+ €28,92
999+ €28,53
1999+ €28,15
2999+ €27,76
4999+ €26,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXFE
Bolt Hole Centres:
101.5mm
Technical

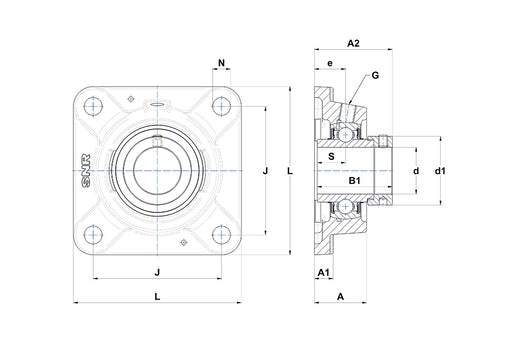

--- Dimensions
Shaft diameter 40mm
A 39.5mm
A1 13mm
A2 58.9mm
B 42.8mm
B1 56.3mm
d1 58mm
e 24mm
J 101.5mm
L 130mm
N 14mm
S 21.4mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.19 kg
