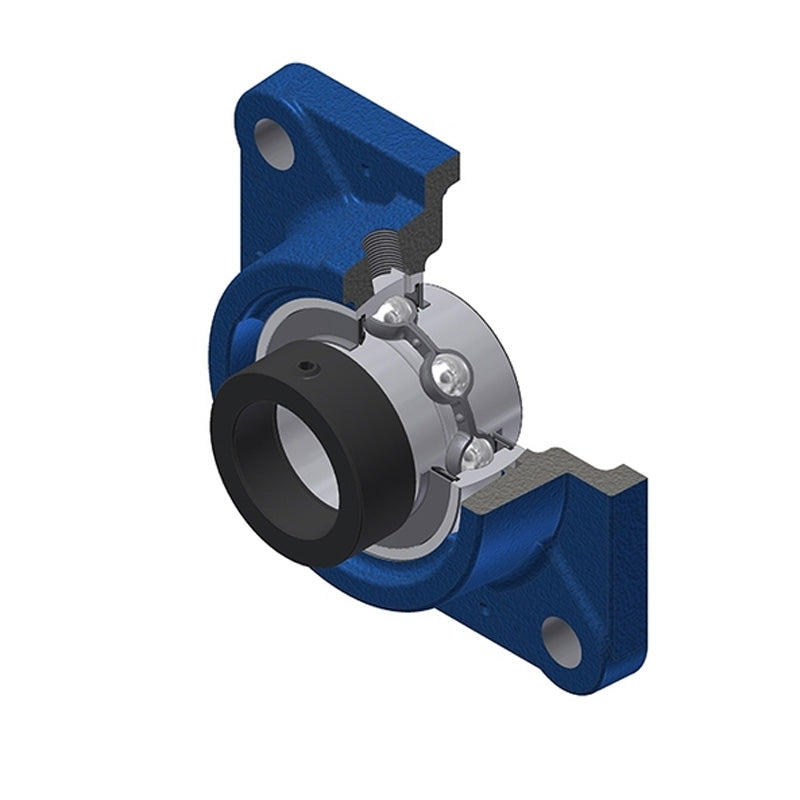

• SNR EXFE207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXFE207-SNR

SNR EXFE207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
€40,95 ex VAT
€40,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,79
4+ €29,06
9+ €28,72
19+ €28,37
49+ €28,02
99+ €27,68
499+ €25,95
999+ €25,60
1999+ €25,26
2999+ €24,91
4999+ €24,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
H7DNO3QCDC
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXFE
Bolt Hole Centres:
92mm
Technical

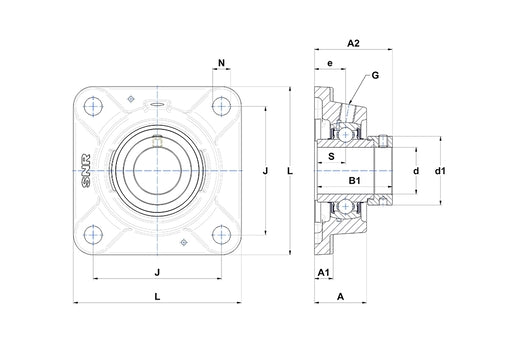

--- Dimensions
Shaft diameter 35mm
A 36mm
A1 12.5mm
A2 53.3mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 21mm
J 92mm
L 118mm
N 14mm
S 18.8mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.7 kg
