SKU: EXFC218-SNR

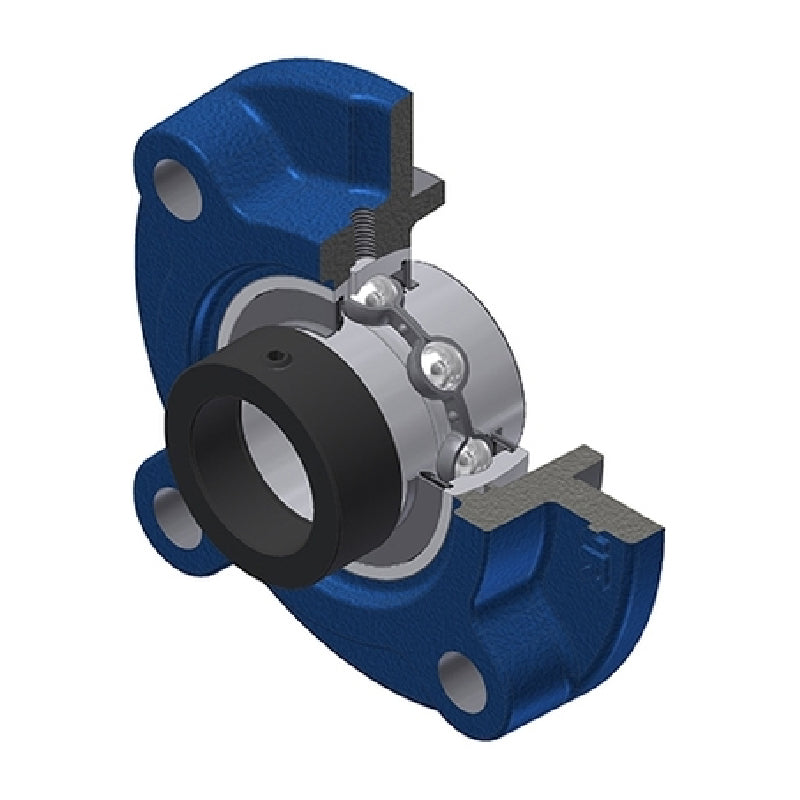

SNR EXFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€323,95
ex VAT
Regular price
Sale price
€323,95
ex VAT
In stock
Price Break
3+
€246,02
4+
€232,20
9+
€229,44
19+
€226,67
49+
€223,91
99+
€221,14
499+
€207,32
999+
€204,56
1999+
€201,79
2999+
€199,03
4999+
€193,50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- EXFC
- Pitch Circle Diameter:
- 220mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 68mm |
| A1 | 20mm |
| A2 | 70mm |
| A4 | 50mm |
| B | 55mm |
| B1 | 72.5mm |
| d1 | 120mm |
| e | 22mm |
| H3 | 190mm |
| J | 220mm |
| L | 265mm |
| N | 23mm |
| S | 24.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 13.52 kg |
