SKU: EXFC212-SNR

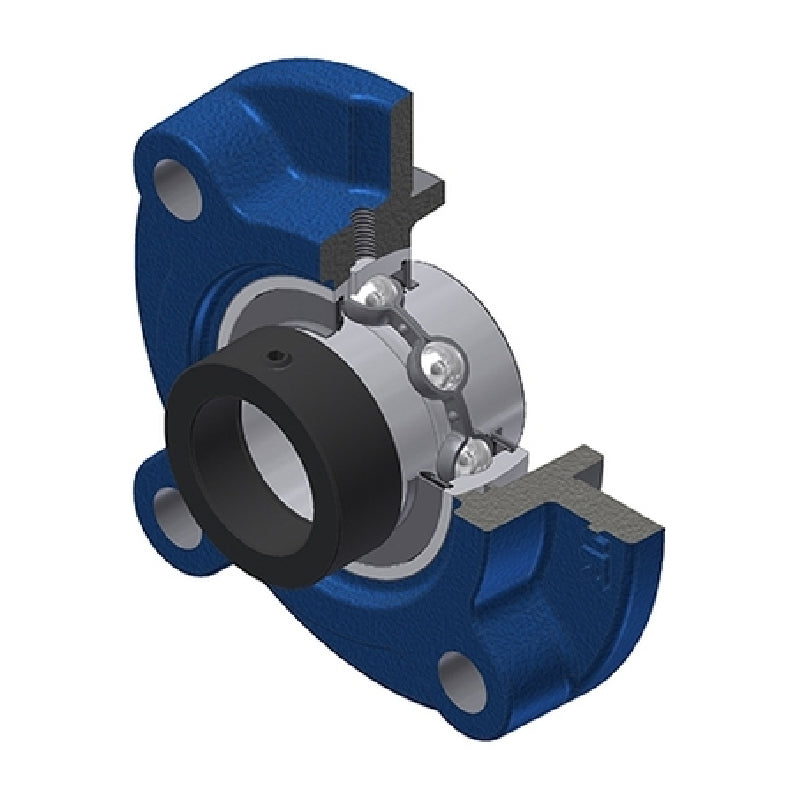

SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €95,95 ex VAT
Regular price Sale price €95,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €72,40
4+ €68,33
9+ €67,52
19+ €66,70
49+ €65,89
99+ €65,08
499+ €61,01
999+ €60,20
1999+ €59,38
2999+ €58,57
4999+ €56,94
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

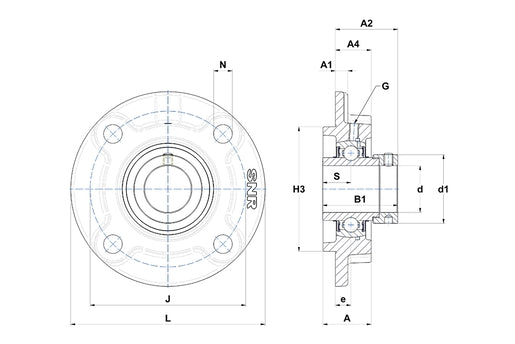

--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 15mm
A2 63.8mm
A4 36mm
B 61.8mm
B1 77.7mm
d1 82mm
e 17mm
H3 135mm
J 160mm
L 195mm
N 19mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.26 kg
