SKU: EXFC211-SNR

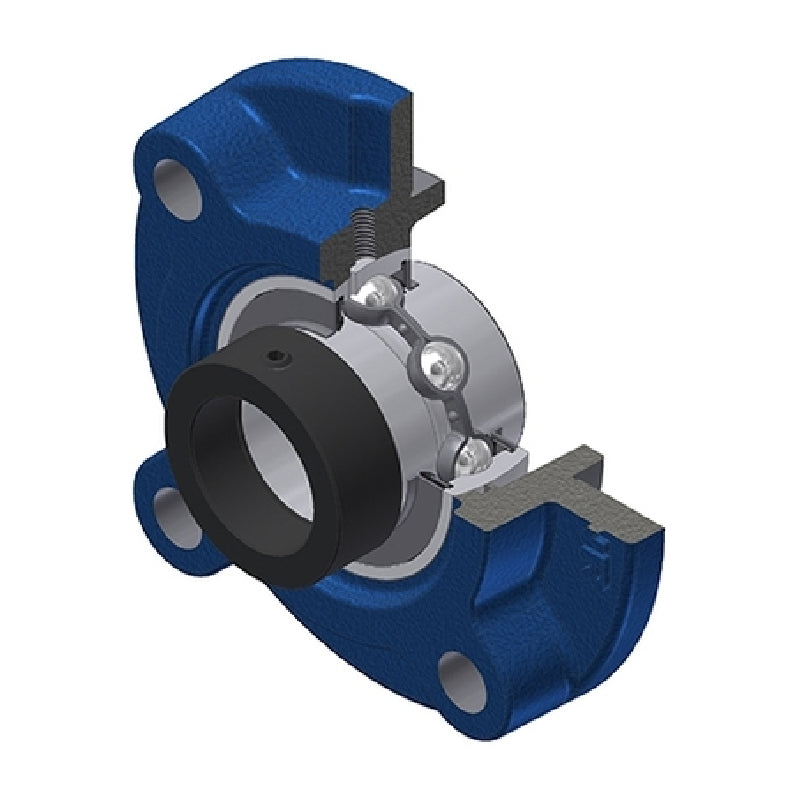

SNR EXFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€80,95
ex VAT
Regular price
Sale price
€80,95
ex VAT
In stock
Price Break
3+
€61,34
4+
€57,89
9+
€57,20
19+
€56,52
49+
€55,83
99+
€55,14
499+
€51,69
999+
€51,00
1999+
€50,31
2999+
€49,62
4999+
€48,25
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXFC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 42mm |
| A1 | 13mm |
| A2 | 56.6mm |
| A4 | 30mm |
| B | 55.4mm |
| B1 | 71.3mm |
| d1 | 74.5mm |
| e | 13mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 19mm |
| S | 27.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.1 kg |
