SKU: EXFC210-SNR
SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€64,95
ex VAT
Regular price
Sale price
€64,95
ex VAT
In stock
Price Break
3+
€48,76
4+
€46,02
9+
€45,47
19+
€44,92
49+
€44,38
99+
€43,83
499+
€41,09
999+
€40,54
1999+
€39,99
2999+
€39,44
4999+
€38,35
Quantity
Couldn't load pickup availability
Share this product
Description
Description

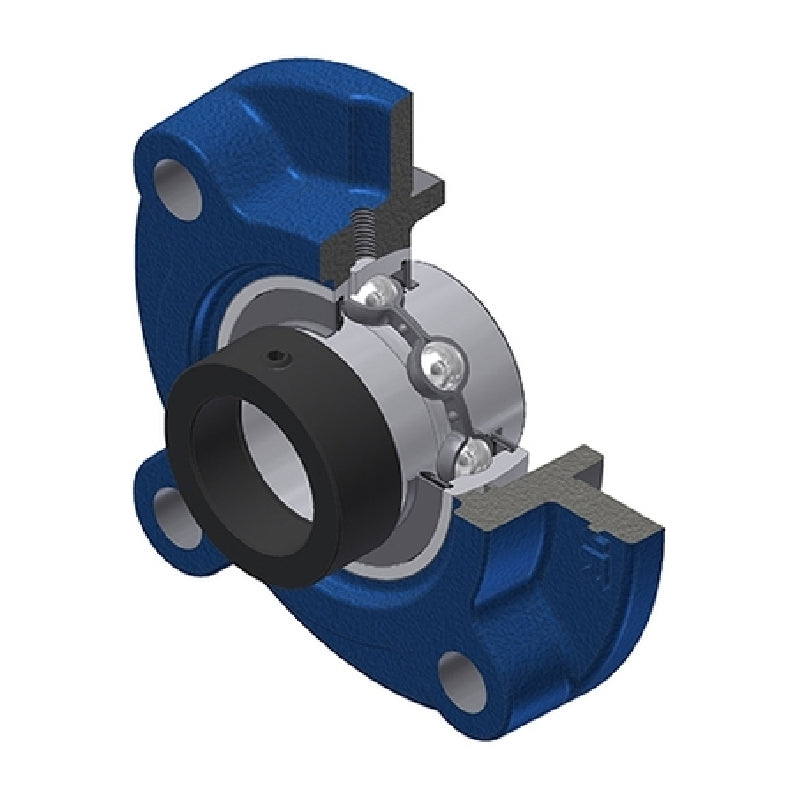

EXFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXFC
- Pitch Circle Diameter:
- 138mm
Technical
Technical

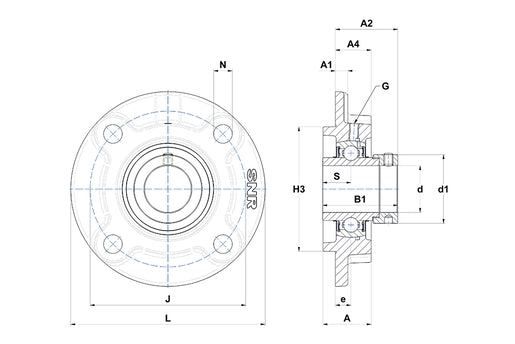

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 14mm |
| A2 | 48.1mm |
| A4 | 28mm |
| B | 49.2mm |
| B1 | 62.7mm |
| d1 | 67.2mm |
| e | 10mm |
| H3 | 110mm |
| J | 138mm |
| L | 165mm |
| N | 16mm |
| S | 24.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 3.05 kg |
