• SNR EXF213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXF213-SNR

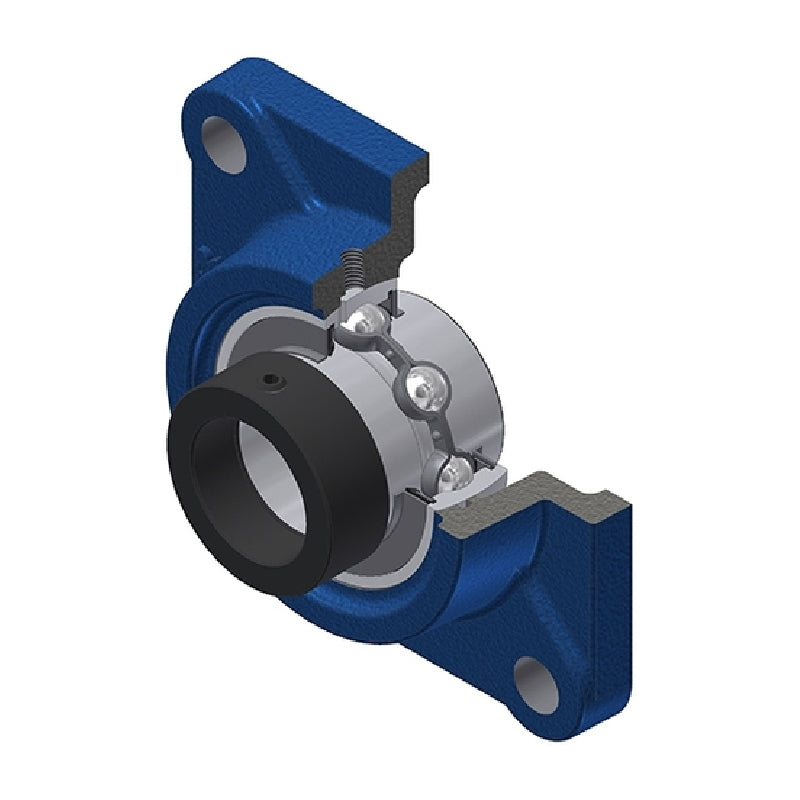

SNR EXF213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXF213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
€103,95 ex VAT
€103,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €78,64
4+ €74,22
9+ €73,34
19+ €72,46
49+ €71,57
99+ €70,69
499+ €66,27
999+ €65,39
1999+ €64,50
2999+ €63,62
4999+ €61,85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
EXF
Bolt Hole Centres:
149mm
Technical
--- Dimensions
Shaft diameter d 65mm
A 50mm
A1 22mm
A2 81.6mm
B 68.2mm
B1 85.7mm
d1 86mm
e 30mm
J 149mm
L 187mm
N 19mm
S 34.1mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.03 kg
